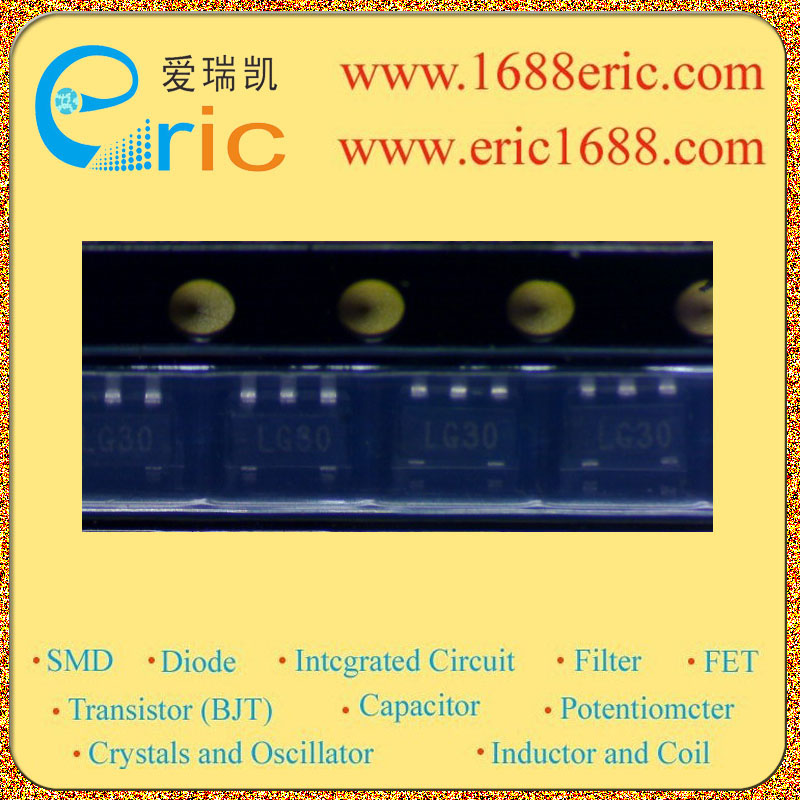

MIC5219-3.0BM5 LG30 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
2.5~12V |
| 输出电压VOUT
Voltage - Output |
3V |
| 输出电流Io
Current - Output |
500mA/0.5A |
| 最大压降VDO
Voltage - Dropout |
350mV/0.35V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
有 Yes |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
500mA-Peak Output LDO Regulator?Low 500mV maximum dropout voltage at full load ? Extremely tight load and line regulation ? Ultra-low-noise output ? Low temperature coefficient ? Current and thermal limiting ? Reversed-battery protection ? CMOS/TTL-compatible enable/shutdown control ? Near-zero shutdown current ? Laptop, notebook, and palmtop computers ? Cellular telephones and battery-powered equipment ? Consumer and personal electronics ? High-efficiency linear power supplie |
| 描述与应用 |
值为500mA的峰值输出LDO稳压器?低500mV的最大电压差在满负荷 ?极其严格的负载和线路调节 ?超低噪音输出 ?低温度系数 ?电流和热限制 ?反相电池保护 ?CMOS/ TTL兼容使能/关断控制 ?近零关断电流 ?笔记本电脑，笔记本电脑，掌上型电脑 ?蜂窝电话和电池供电设备 ?消费和个人电子产品 ?高效率线性电源Supplie |
