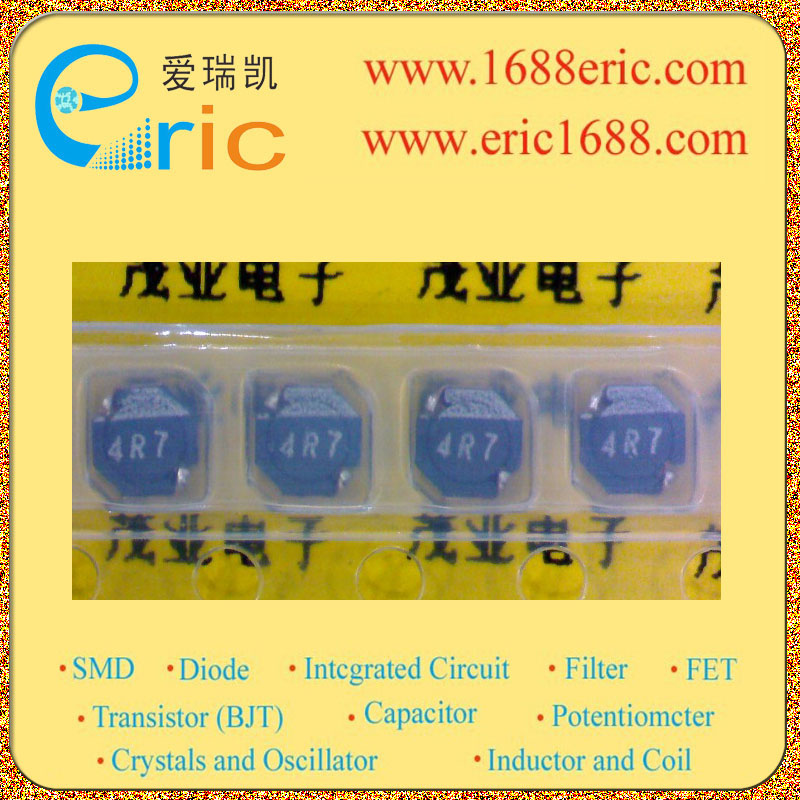

VLF3010AT-4R7MR70 的参数 |
| Q值
Q Value |
|
| 电感值
Inductance |
4.7uH |
| 误差
Tolerance |
±20% |
| 额定电流
Current Rating |
700mA |
| 饱和电流
Current - Saturation |
|
| DC电阻DCR
DC Resistance (DCR) |
0.24Ω/Ohm |
| Description & Applications |
FEATURES ? These are compact inductors for power line measuring at L2.6×W2.8mm and 1mm in height, considerably smaller compared to inductors with comparable characteristics. ? They feature low coil resistance, making them suitable for large currents (e.g. 0.7A at 0.24Ω). ? They offer an excellent shielding effect. ? The products do not contain lead and support lead-free soldering. ? This product does not contain regulated substances that are slated to be included in RoHS. APPLICATIONS For mobile phones, hard disk drives and DSCs. |
| 描述与应用 |
特点 ?这些都是紧凑型电感器的电源线测量L2.6×W2.8mm的和1mm的高度，相比相当小 电感可比特色。 它们的特点是低线圈的电阻，使它们适合于大电流（例如0.7A，0.24Ω）。 他们提供了一个很好的屏蔽效果。 ?该产品不含有铅和支持无铅焊接。 ?本产品不含有受管制物质， 预计被列入限制有害物质指令（RoHS）规范。 应用 对于手机，硬盘驱动器和数码相机。 |
