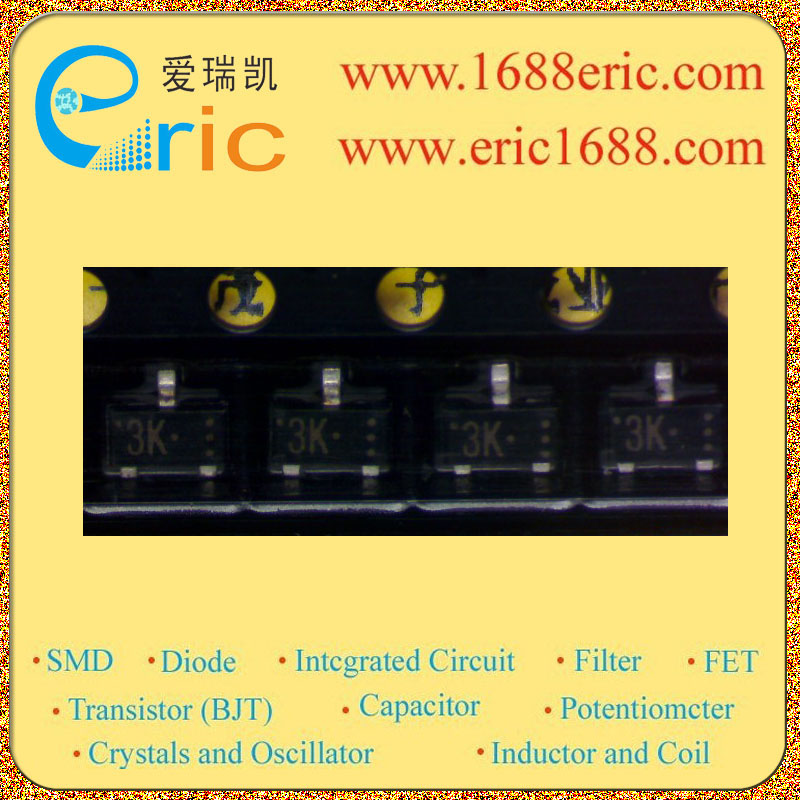

2SC5556OOL 3K 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
15V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
10V |
| 集电极连续输出电流IC
Collector Current(IC) |
80mA |
| 截止频率fT
Transtion Frequency(fT) |
6Ghz |
| 直流电流增益hFE
DC Current Gain(hFE) |
110~250 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc
Power Dissipation |
300mW/0.3W |
| Description & Applications |
Silicon NPN epitaxial planar type For UHF band low-noise amplification ■ Features ? Low noise figure NF ? High transition frequency fT ? Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 |
NPN硅外延平面型 对于UHF频段低噪声放大 ■特点 ?低噪声系数NF ?高转换频率fT ?迷你型包装，使小型的设备 通过自动插入磁带包装和杂志 填料 |
