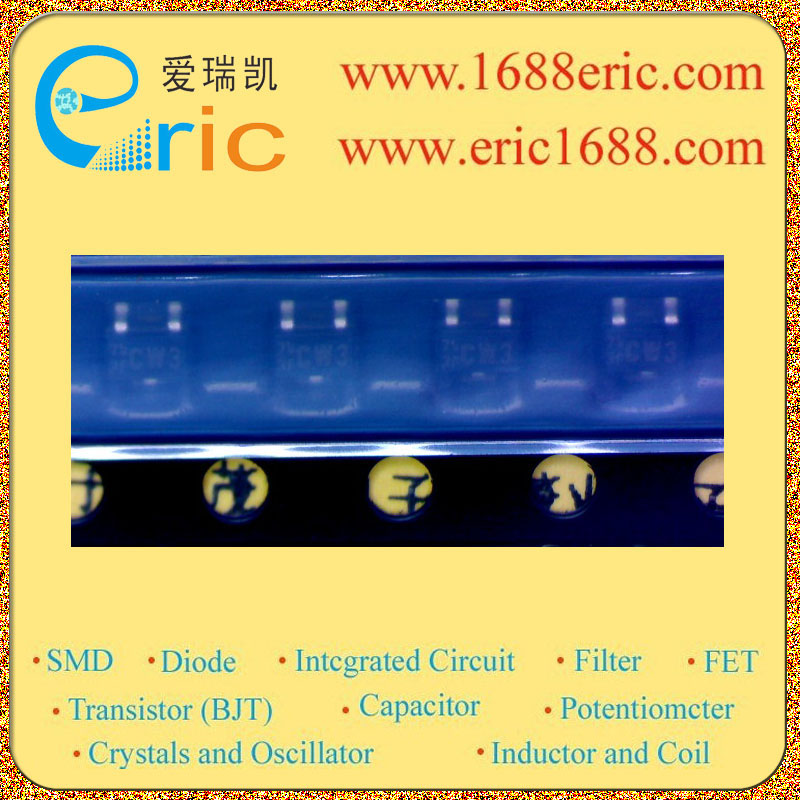

BAR63V-03W-G08 CW3 的参数 |
| 反向电压VR
Reverse Voltage |
50V |
| 平均正向整流电流IF
Forward Current(If) |
100mA/0.1A |
| 二极管电容值CT
Diode capacitance |
0.23pF |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
RF PIN Diode - Single in SOT-323 Description Characterized by a very low reverse Capacitance the PIN Diode BAR63V-03W was designed for RF signal tuning. As a function of the forward bias current the forward resistance (rf) can be adjusted to less than 1 ? while the low reverse capacitance offers a high isolation. Typical applications for this PIN Diodes are wireless, mobile and TV-systems. Features ? Low forward resistance ? Very small reverse capacitance ? Lead (Pb)-free component ? Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Applications For frequency up to 3 GHz RF-signal tuning Mobile, wireless and TV-Applications Mechanical Data |
| 描述与应用 |
RF PIN二极管 - 单SOT-323 描述 特点是一个非常低的反向电容 PIN二极管BAR63V-03W设计的RF信号 调整。由于正向偏置电流的函数 的正向电阻（射频）可以调整到小于 1Ω而低反向电容提供了一个高 隔离。这个PIN二极管的典型应用 无线，移动和电视系统。 特点 ??低正向电阻 ??非常小的反向电容 ??铅（Pb）免费组件 ??组件按照RoHS 2002/95/EC 和WEEE 2002/96/EC 应用 对于频率高达3 GHz RF信号调谐 移动，无线和电视应用 机械数据 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| BAR63V-04W |
CW4 |
VISHAY |
07NOPB |
SOT-323/SC-70 |
2600 |
二极管Diodes-PIN二极管PIN Diodes-双管串联1 Pair Series Connection |
查看 |
| BAR63V-05 |
C5 |
VISHAY |
07NOPB |
SOT-23/SC59 |
2600 |
二极管Diodes-PIN二极管PIN Diodes-双管共阴极1 Pair Common Cathode |
查看 |
| BAR63V-06 |
C6 |
VISHAY |
07NOPB |
SOT-23/SC59 |
2800 |
二极管Diodes-PIN二极管PIN Diodes-双管共阳极1 Pair Common Anode |
查看 |
| BAR63V-03W-G08 |
CW3 |
VISHAY |
07NOPB |
SOT-323/SC-70 |
3000 |
二极管Diodes-PIN二极管PIN Diodes-单管Single |
查看 |
| BAR63V-04W |
cw4 |
VISHAY |
07nopb |
SOT-323/SC-70 |
3000 |
二极管Diodes-PIN二极管PIN Diodes-双管串联1 Pair Series Connection |
查看 |
| BAR63V-06W-GS08 |
CW |
VISHAY |
08NOPB |
SOT-323/SC-70 |
3000 |
二极管Diodes-PIN二极管PIN Diodes-双管共阳极1 Pair Common Anode |
查看 |
|
|
|
