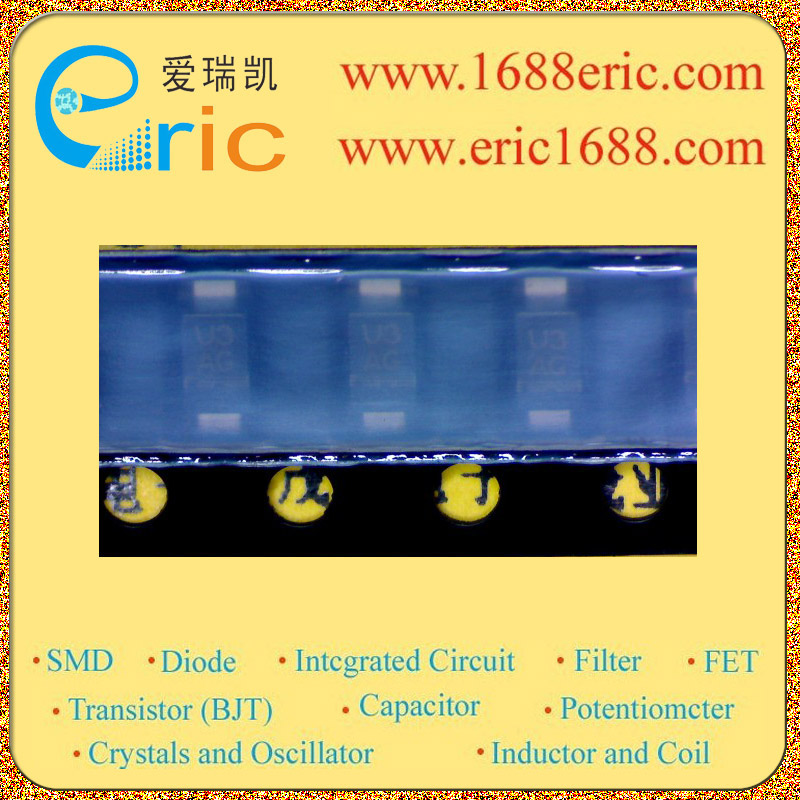

SMF6V0A-GS08 AG 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
6V |
| 反向击穿电压VBR
Breakdown Voltage |
6.67V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
200W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
19.4A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
FEATURES ? Surface Mount ESD Protection Diodes ? For surface mounted applications ? Low-profile package ? Optimized for LAN protection applications ? Ideal for ESD protection of data lines in accordance with IEC 61000-4-2 (IEC 801-2) ? Ideal for EFT protection of data lines in accordance with IEC 61000-4-4 (IEC 801-4) ? ESD-protection acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge ? Low incremental surge resistance, excellent clamping capability ? 200 W peak pulse power capability with a 10/1000 μs waveform, repetition rate (duty cycle): 0.01 % ? Very fast response time ? High temperature soldering guaranteed: 260 °C/10 s at terminals ? e3 - Sn ? AEC-Q101 qualified ? Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC ? Halogen-free according to IEC 61249-2-21 definiton |
| 描述与应用 |
特点 ?表面贴装ESD保护二极管 ?对于表面安装应用 ?薄型封装 ?优化局域网保护应用 ?适用于数据线的ESD保护符合IEC61000-4-2（IEC801-2） ?适用于EFT保护的数据线根据IEC61000-4-4（IEC801-4） ?ESD保护ACC。 IEC61000-4-2 ±30 kV接触放电 ±30 kV空气放电 ?低增量浪涌性，优良的钳位能力 ?200瓦峰值脉冲功率能力与10/1000微秒波形，重复率（占空比）：0.01％ ?非常快的响应时间 ?高温焊接保证：260°C/10秒终端 ·E3 - 锡 ?通过AEC-Q101资格 ?符合RoHS指令2002/95/EC和按照WEEE 2002/96/EC ?无卤素根据IEC61249-2-21 定义的 |
