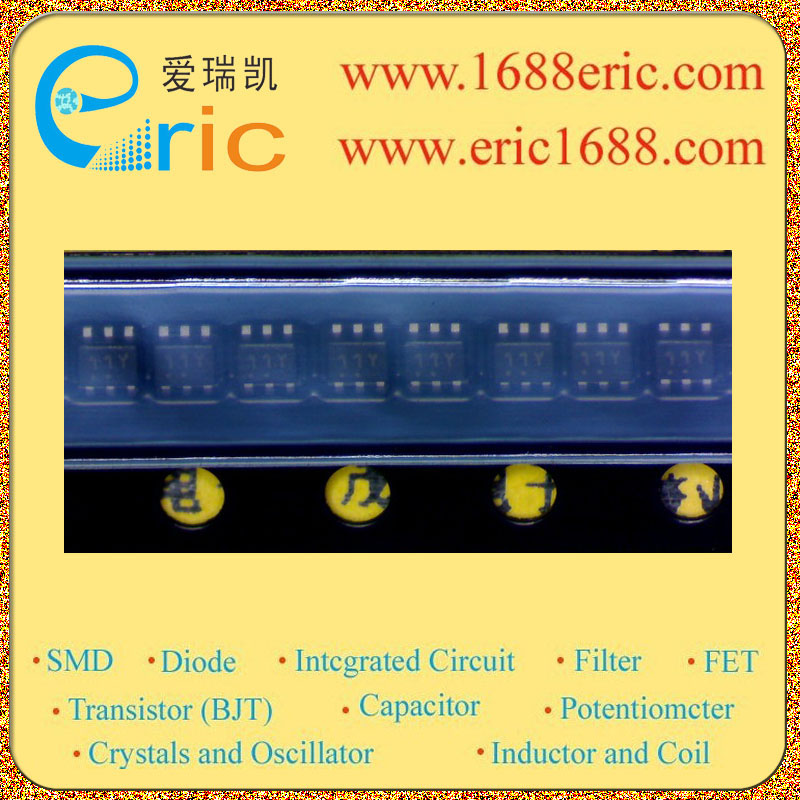

NSBC114EPDXV6T5
 型号:  NSBC114EPDXV6T5
 标记/丝印/代码/打字:  11Y
 厂家:  ON
 封装:  SOT-563
 批号:  04+ROHS
 库存数量:  16850
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  复合带阻尼三极管Complex Bipolar Digital Transistor
    NPN+PNP
 技术文档PDF:  在线阅读

 在线购买

NSBC114EPDXV6T5 11Y 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) -50V/50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) -50V/50V
集电极连续输出电流IC Collector Current(IC) -100mA/100mA
Q1基极输入电阻R1 Input Resistance(R1) 10KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 10KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio 1
Q2基极输入电阻R1 Input Resistance(R1) 10KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 10KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio 1
直流电流增益hFE DC Current Gain(hFE) 60
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation 500mW/0.5W
Description & Applications Features ?Dual Bias Resistor Transistors ?NPN and PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network ?Simplifies Circuit Design ?Reduces Board Space ?Reduces Component Count ?Available in 8 mm, 7 inch Tape and Reel ?Lead Free Solder Plating
描述与应用 特点 ?双偏置电阻晶体管 ?NPN和PNP硅表面贴装晶体管与单片偏置电阻网络 ?简化电路设计 ?缩小板级空间 ?减少元件数 ?8毫米,7英寸磁带和卷轴 ?无铅焊接电镀
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
NSBC114EDXV6T1G 7AC ON 05NOPB SOT-563 0 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
NSBC144EDXV6T1G 7C ON 06+NOPB SOT-563 16000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
NSBC124EPDXV6T5 12P ON 04+ROHS SOT-563 24100 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+PNP 查看
NSBC114EPDXV6T5 11Y ON 04+ROHS SOT-563 16850 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+PNP 查看
NSBC144EDXV6T5 7C ON 05+ROHS SOT-563 25000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
NSBC143ZPDXV6T5 33L ON 04+ROHS SOT-563 7500 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+PNP 查看
NSBC114EDXV6T5 7AU ON 04NOPB SOT-563 0 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
NSBC123JPDXV6T1G 3S6 ON 09+ROHS SOT-563 0 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+PNP 查看
NSBC114EDXV6T5 7AU ON 04NOPB SOT-563 0 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
NSBC123JPDXV6T1G 3S6 ON 09+ROHS SOT-563 16000 三极管Bipolar Junction Transistors(BJT) 查看
