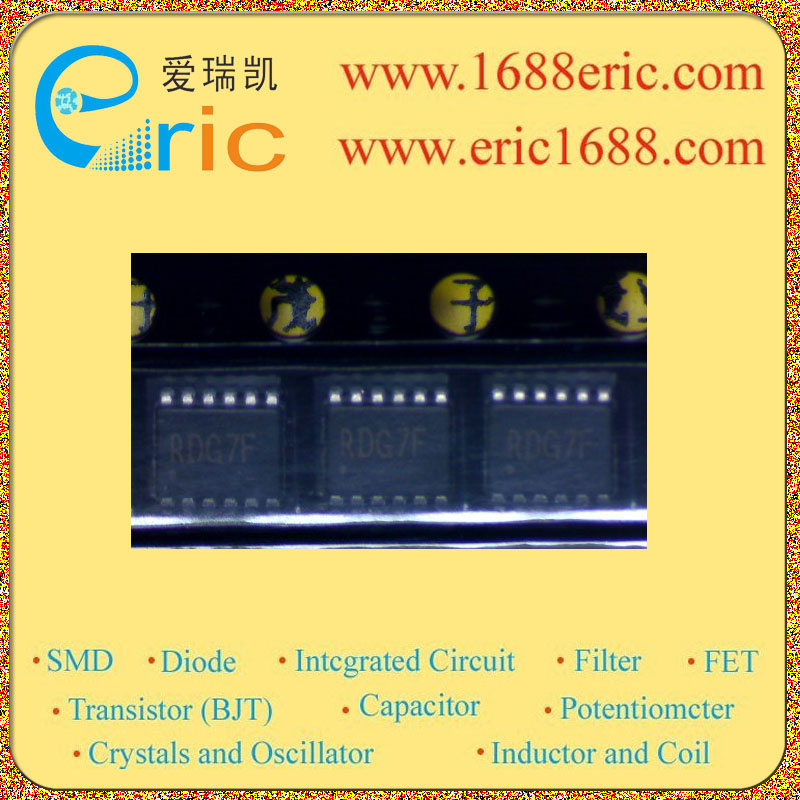

AAT1230ITP-T1 RDG 的参数 |
| 控制方式
MODE |
PWM |
| 输入电压VIN
Input Voltage |
2.7~5.5V |
| 输出电压VOUT
Output Voltage |
〈18V |
| 输出电流IOUT
Output Current |
100mA/0.1A |
| 震荡频率FOSC
Oscillation Frequency |
2MHZ |
| 内置FET
Built-in FET |
PMOS |
| Description & Applications |
18V 100mA Step-Up Converter ? VIN Range: 2.7V to 5.5V ? Maximum Output: 18V @ 100mA ? True Load Disconnect ? Dynamic Voltage Control Options ? Hysteretic Control — No External Compensation Components — Excellent Load Transient Response — High Efficiency at Light Load ? Up to 2MHz Switching Frequency ? Ultra-Small Inductor and Capacitors ? Integrated Low RDS(ON) MOSFET Switches ? Up to 85% Efficiency ? <1μA Shutdown Current ? Integrated Soft Start ? Two Turn-On Time Options — AAT1230: TSS = 0.35ms — AAT1230-1: TSS = 3.5ms ? Cycle-by-Cycle Current Limit ? Short-Circuit, Over-Temperature Protection ? Available in TSOPJW-12 or TDFN34-16 Package ? -40°C to +85°C Temperature Range ? CCD Bias Circuit ? Digital Still Cameras ? LCD Bias Circuit |
| 描述与应用 |
18V的100mA升压转换器 ?VIN范围：2.7V至5.5V ?最大输出：18V100mA时 ?真正的负载断开 ?动态电压控制选项 ?迟滞控制 - 无需外部补偿组件 - 出色的负载瞬态响应 - 在轻负载时的高效率 ?高达2MHz开关频率 ?超小型电感器和电容器 ?集成的低RDS（ON）MOSFET开关 ?高达85％的效率 ?<1μA关断电流 ?集成的软启动 ?两个开启时间选项 - AAT1230：TSS =0.35ms - AAT1230-1：TSS =3.5ms的 ?逐周期电流限制 ?短路，过温保护 ?可在TSOPJW-12或TDFN34-16包装 ?-40°C至+85°C温度范围 ?CCD偏置电路 ?数码相机 ?LCD偏置电路 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| AAT1235IRN-T1 |
TKV |
ANALOGIC |
07NOPB |
TDFN34-16 |
48000 |
电源管理ICPower Management IC/PMIC-LED驱动LED Driver |
查看 |
| AAT1236IRN-T1 |
UDV |
ANALOGIC |
06NOPB(30RM) |
TDFN34-16 |
48280 |
电源管理ICPower Management IC/PMIC-LED驱动LED Driver |
查看 |
| AAT1232IRN-T1 |
SXV |
ANALOGIC |
06NOPB |
TDFN34-16 |
3000 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
| AAT1230ITP-T1 |
RDG |
ANALOGIC |
07NOPB |
TSOPJW-12 |
1361 |
电源管理ICPower Management IC/PMIC-DC/DC降压转换器DC/DC Step-Down Converter |
查看 |
| AAT1230IRN-1-T1 |
TJV |
ANALOGIC |
06NOPB3RM |
TDFN34-16 |
5700 |
电源管理ICPower Management IC/PMIC-DC/DC降压转换器DC/DC Step-Down Converter |
查看 |
|
|
|
