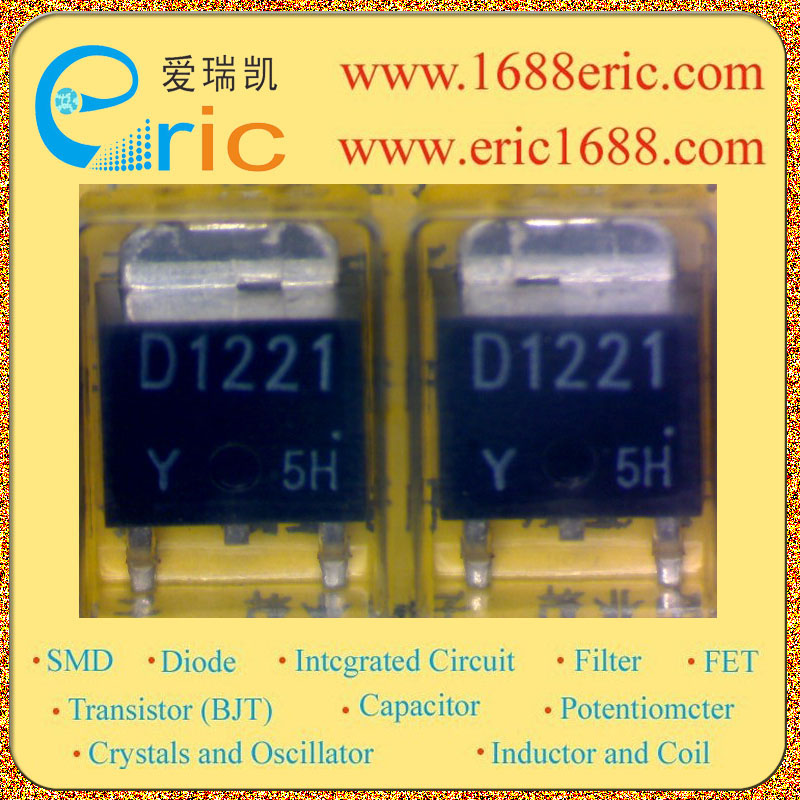

2SD1221-Y D1221 的参数 |
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
60V |
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
60V |
集电极连续输出电流IC
Collector Current(IC) |
3A |
截止频率fT
Transtion Frequency(fT) |
3GHz |
直流电流增益hFE
DC Current Gain(hFE) |
100~200 |
管压降VCE(sat)
Collector-Emitter Saturation Voltage |
400mV/0.4V |
耗散功率Pc
Power Dissipation |
1W |
Description & Applications |
Silicon NPN triple diffused type audio frequency power amplifier application features *low collector saturation voltage: Vce(sat)=0.4V *high power dissipation:Pc=20W |
描述与应用 |
硅NPN三重扩散类型 音频功放中的应用 特点 *低集电极饱和电压VCE(饱和)=0.4V *高功耗PC =20W |
