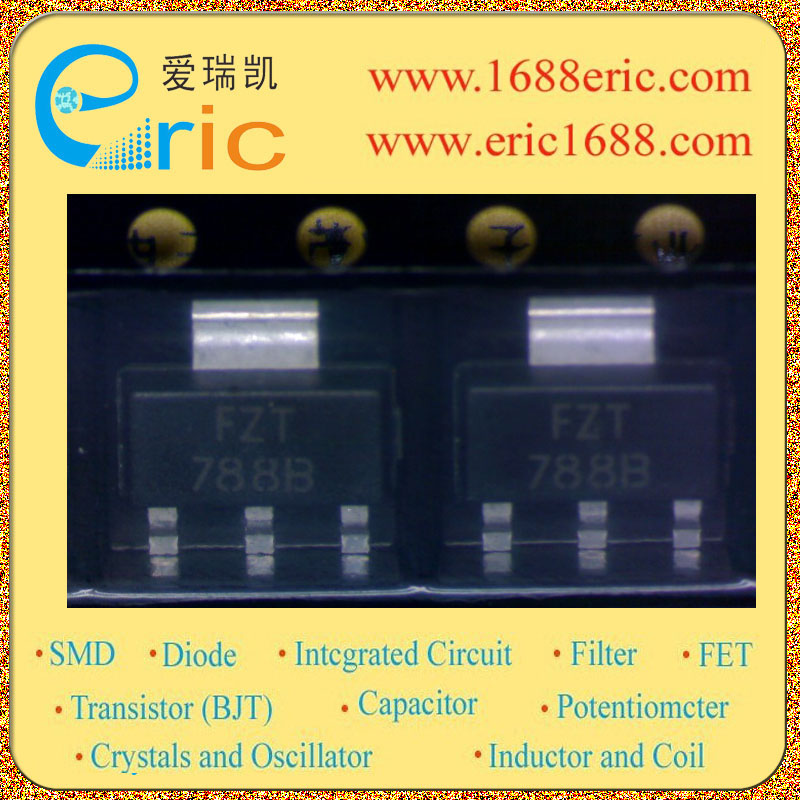

UFZT788BTC FZT788B 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-15V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?15V |
| 集电极连续输出电流IC
Collector Current(IC) |
-3A |
| 截止频率fT
Transtion Frequency(fT) |
100MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
500~1500 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
?500mV/-0.5V |
| 耗散功率Pc
PoWer Dissipation |
2W |
| Description & Applications |
SOT223 PNP SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR FEATURES * Low equivalent on-resistance; APPLICATIONS * Battery powered circuits COMPLEMENTARY TYPE ?FZT688B |
| 描述与应用 |
SOT223 PNP硅平面中功率高增益晶体管 特点 *低等效导通电阻; 应用 *电池供电电路 互补型FZT688B |
