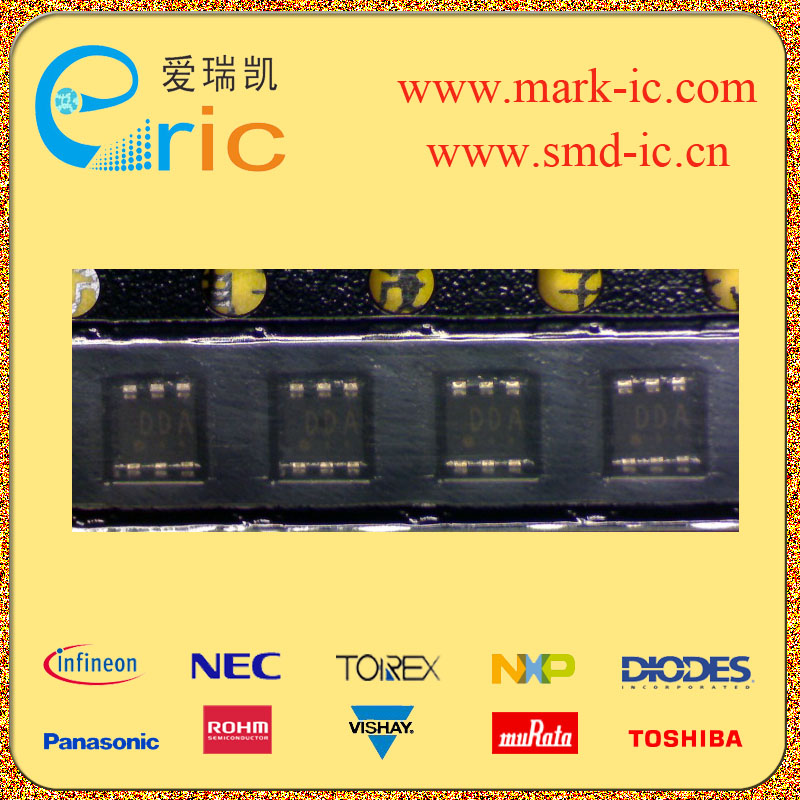

TAH6N201U DDA 的参数 |
| 恒流
Constant Current |
是 YES |
| 恒压
Constant Voltage |
|
| 拓扑
Topology |
线性 Linear |
| 输出数
Number of Outputs |
2 |
| 内部驱动器
Internal Driver |
|
| 初级类型
Type - Primary |
|
| 次级类型
Type - Secondary |
白色 LED White LED |
| 频率
Frequency |
|
| 电源电压
Voltage - Supply |
2.5V ~ 5.5V |
| 输出电压
Voltage - Output |
1.17V |
| Description & Applications |
FEATURES ? TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic ? 2-Channel Non Up-convert Type Constant Current Driver IC ? Constant current driving not to be influenced by load driving voltage or supply voltage due to built-in reference voltage circuit. (Note 1) ? Built-in protection circuit ? Need only one external resistor for setting the driving current Note 1: Higher power supply voltage than the total of load supply voltage and VDRIVE(SAT). |
| 描述与应用 |
特点 ?东芝双极型线性集成电路硅单片 ?双通道非向上转换型恒流驱动IC ?恒流驱动不影响负载的驱动电压或电源电压，由于内置在参考电压电路。 （注1） ?内置保护电路 ?只需要一个外部电阻设置的驱动电流 ?注1：较高的电源电压比总负载电源电压和VDRIVE（SAT）。 |
