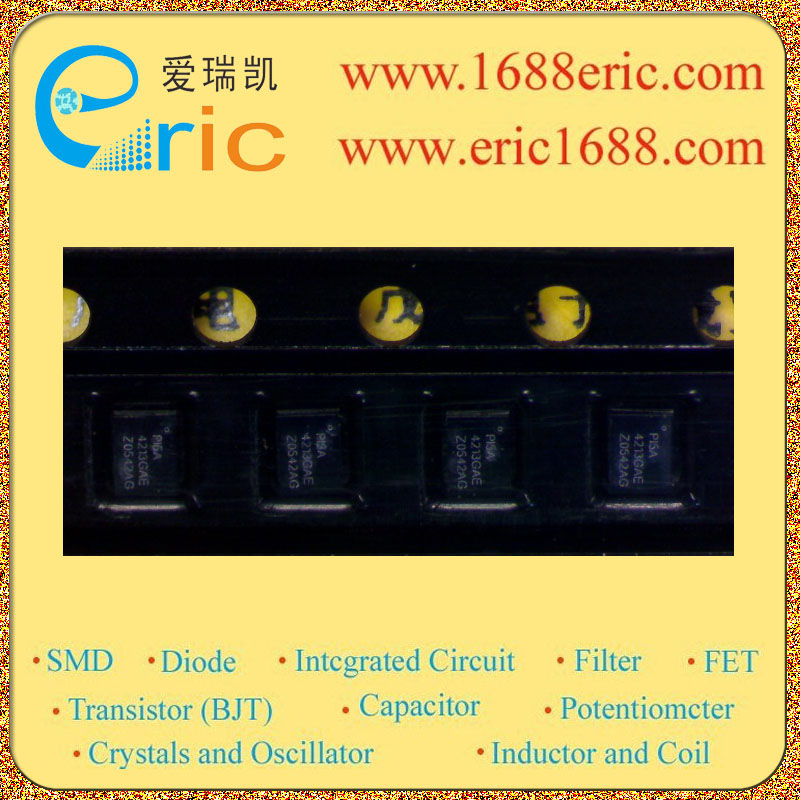

PI5A4213GAEX 4213GAE 的参数 |
| 开关配置
Circuit |
2*单刀三掷 2*SP3T |
| 导通电阻
On-State Resistance |
2Ω/Ohm |
| 电源电压
Voltage - Supply |
1.65 V ~ 5.5 V |
| Description & Applications |
Low Voltage Dual SP3T Analog Switch 3:1 Mux/DeMux Bus Switch CMOS Technology for Bus and Analog Applications Low On-Resistance: 0.5? (typ) on channels 0 and 1 1.65? (typ) on channel 2 Control Input Overvoltage Tolerance: 5.5V min. High Off Isolation: -42dB Crosstalk Rejection Reduces Signal Distortion: -72dB Low THD (0.02% typ @ VCC = 2.7V for channels 0 and 1) Extended Industrial Temperature Range: –40°C to 85°C Applications： Cell Phones PDAs MP3 players Portable Instrumentation Computer Peripherals Speaker Headset Switching Power Routing Relay Replacement Audio and Video Signal Routing PCMCIA Cards Modems |
| 描述与应用 |
低电压双单刀三掷模拟开关3:1复用/解复用总线开关 CMOS总线和模拟技术的应用 低导通电阻：0.5Ω（典型值）的通道0和1 ????????????????????????????????1.65Ω（典型值）的通道2 控制输入过压容差：5.5V分钟。 高关断隔离：-42分贝 降低信号失真串扰抑制：-72dB通道 低总谐波失真（0.02％（典型值）@ VCC= 2.7V通道0和1） 扩展工业温度范围：-40°C至85°C 应用范围： 手机 掌上电脑 MP3播放器 便携式仪表 电脑周边 音箱耳机开关 电源布线 更换继电器 音频和视频信号路由 PCMCIA卡 调制解调器 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| PI5A3157CX |
ZM |
PERICOM |
05+ |
SOT-363/SC70-6 |
1560 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| PI5A3158ZAEX |
AO8O |
PERICOM |
05+ |
TDFN12 |
2600 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| PI5A3159X |
A3B |
PERICOM |
05+ |
SOT-163/SOT23-6 |
5 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| PI5A4599ACX |
A63 |
PERICOM |
03+ |
SOT-363/SC70-6 |
800 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| PI5A4213GAEX |
4213GAE |
PERICOM |
05+ |
CSP12 |
4200 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| PI5A121BCEX |
nJCZ |
PERICOM |
12+ROHS |
SOT-353/SC70-5 |
2500 |
集成电路ICIntegrated Circuit（IC） |
查看 |
|
|
|
