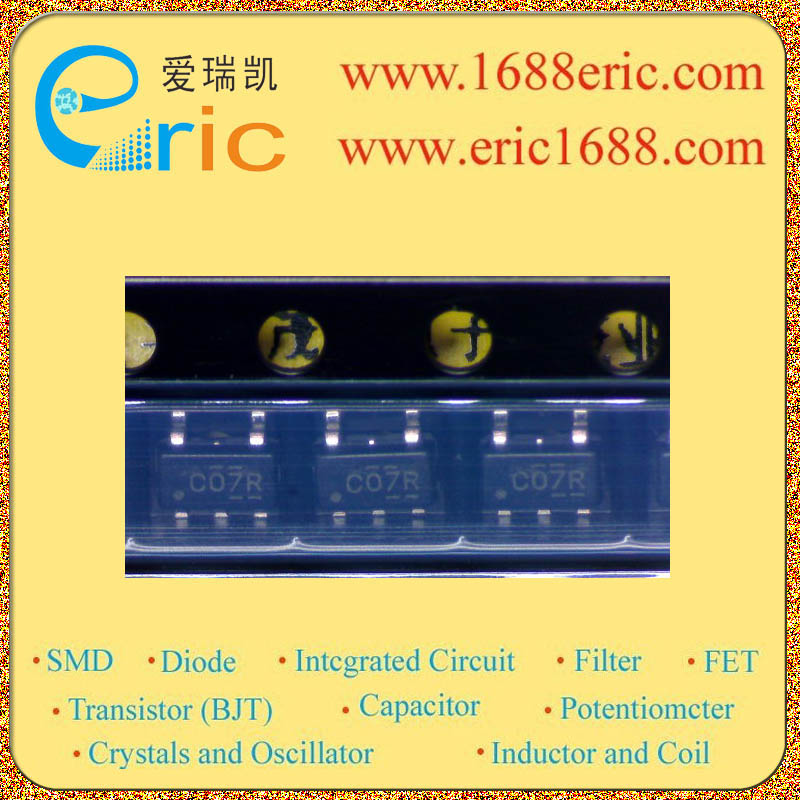

SN74LVC1G07DBV C07R 的参数 |
| 类型
Type |
非反相并带开漏极 Non-Inverting with Open Drain |
| 元件数
Number of Elements |
1 |
| 每元件位数
Number of Bits per Element |
1 |
| 电源电压
Voltage - Supply |
1.65 V ~ 5.5 V |
| 输出高电平，低电平电流
Current - Output High, Low |
—，32mA |
| Description & Applications |
SINGLE BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT;This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation. The output of the SN74LVC1G07 device is open drain and can be connected to other open-drain outputs to implement 'active-low wired-OR' or 'active-high wired-AND' functions. |
| 描述与应用 |
具有漏极开路输出的单缓冲/驱动器;这种单缓冲/驱动器设计用于1.65-V到5.5 V的VCC操作。 SN74LVC1G07设备的输出是漏极开路，可以连接到其它的漏极开路输出来实现的低电平有效的有线或'或'高电平有效的有线和功能。 |
