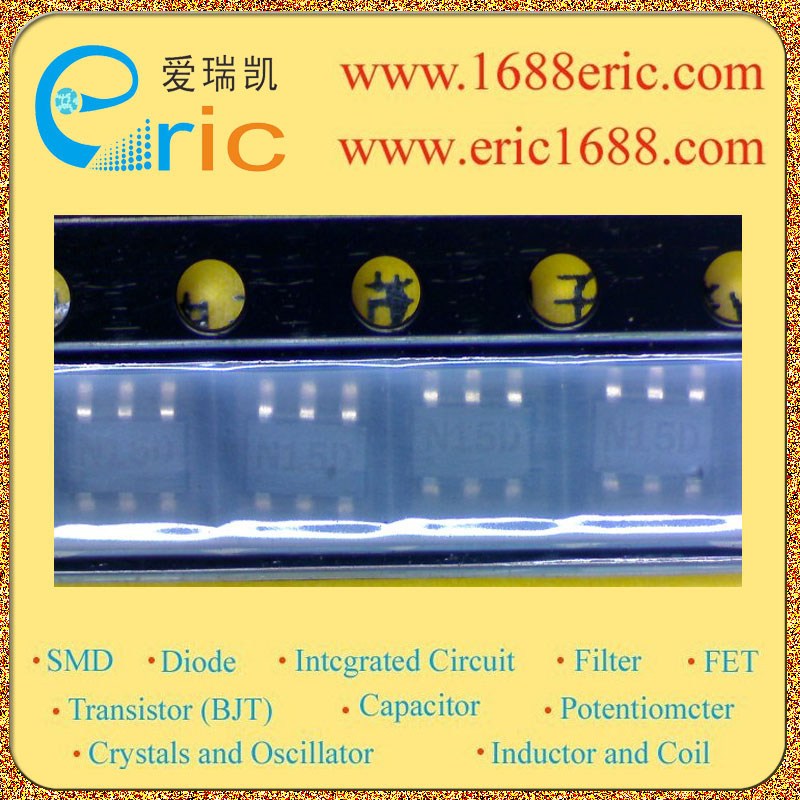

ZXT13N15DE6TA N15D 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
40V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
15V |
| 集电极连续输出电流IC
Collector Current(IC) |
5A |
| 截止频率fT
Transtion Frequency(fT) |
72MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
450 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
145mV/0.145V |
| 耗散功率Pc
Power Dissipation |
1.7W |
| Description & Applications |
? 15V NPN SILICON LOW SATURATION SWITCHING TRANSISTOR ? Extremely Low Equivalent On Resistance ? Extremely Low Saturation Voltage ? hFEcharacterised up to 15A ? IC=5A Continuous Collector Current ? SOT23-6 package |
| 描述与应用 |
?15V NPN硅低饱和开关晶体管 ?极低的等效导通电阻 ?极低的饱和电压 ?hFEcharacterised的高达15A ?IC= 5A的连续集电极电流 |
