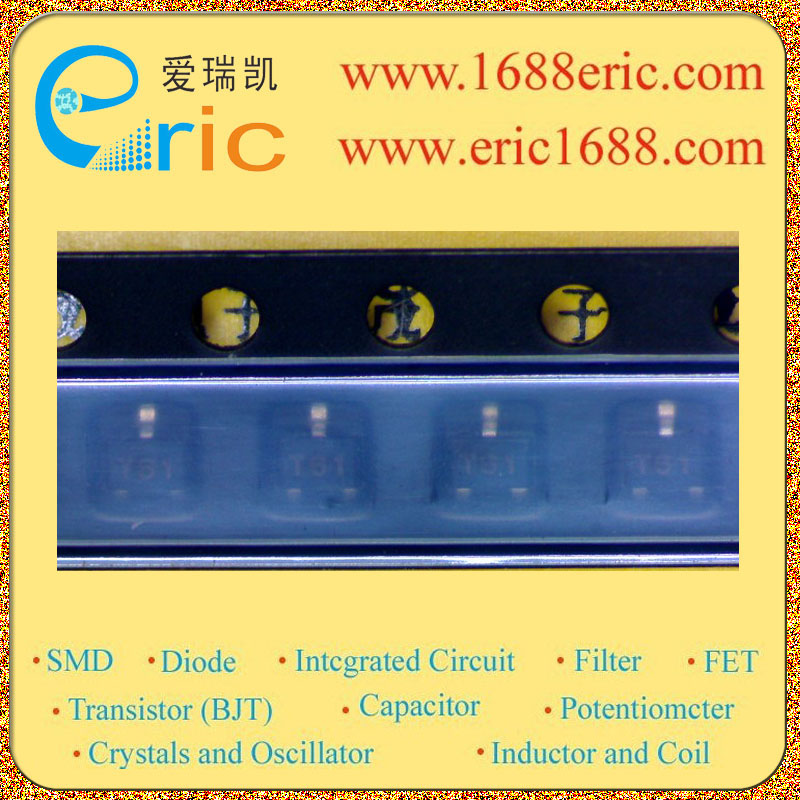

ZUMT617TA T61 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
15V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
15V |
| 集电极连续输出电流IC
Collector Current(IC) |
1.5A |
| 截止频率fT
Transtion Frequency(fT) |
180MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
450 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
205mV/0.205V |
| 耗散功率Pc
Power Dissipation |
500mW/0.5W |
| Description & Applications |
Super323? SOT323 NPN SILICON POWER (SWITCHING) TRANSISTOR * 500mW POWER DISSIPATION * IC CONT 1.5A * 5A Peak Pulse Current * Excellent HFE Characteristics Up To 5A (pulsed) * Extremely Low Equivalent On Resistance; RCE(sat) |
| 描述与应用 |
Super323?SOT323 NPN硅功率 （开关）晶体管 *500mW的功耗 * CONT IC1.5A *5A峰值脉冲电流 *优秀放大特性，饱和电流高达5A |
