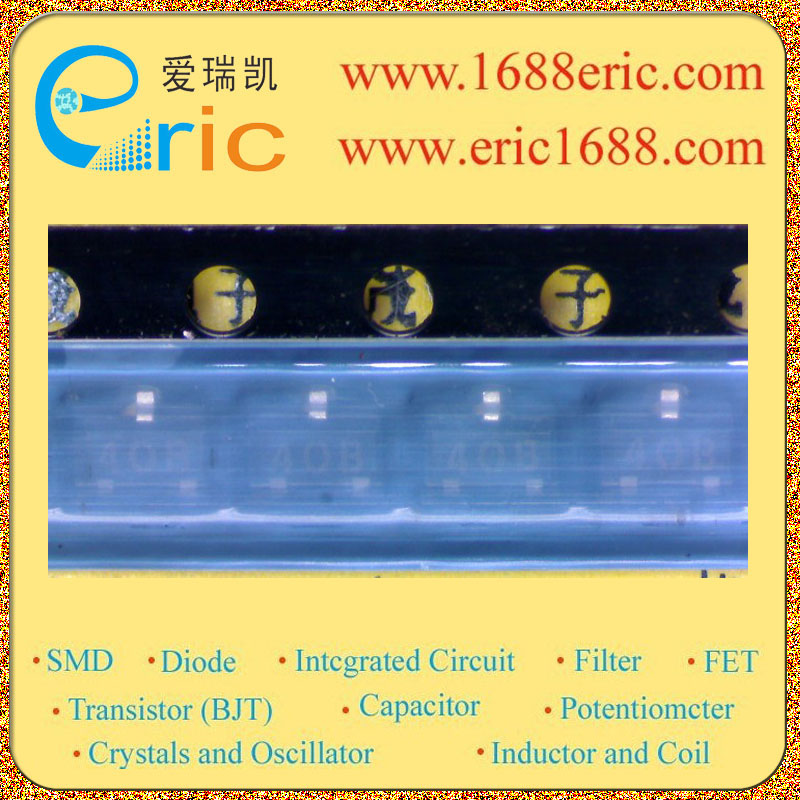

ZR40402F41TA 40B 的参数 |
| 参考类型
Reference Type |
旁路，精度 Shunt, Precision |
| 输出电压Vo
Voltage - Output |
4.096V |
| 误差
Tolerance |
±2% |
| 温度系数
Temperature Coefficient |
100ppm/°C |
| 输入电压
Voltage - Input |
|
| 阴极电流
Current - Cathode |
60μA |
| 输出电流IOUT
Current - Output |
15mA |
| Description & Applications |
FEATURES ? PRECISION 4.1 VOLT MICROPOWER VOLTAGE REFERENCE ? Small outline SOT23 package ? No stabilizing capacitor required ? Typical TC 20ppm/°C ? Typical slope resistance 0.55? ? 2% and 1% tolerance ? Industrial temperature range ? Operating current 60μA to 15mA ? “Green” molding compound (No Br, Sb) APPLICATIONS ? Battery powered and portable equipment. ? Metering and measurement systems. ? Instrumentation. ? Test equipment. ? Data acquisition systems. ? Precision power supplies. ? Crystal oscillators. |
| 描述与应用 |
特点 ?精密4.1伏微功耗电压基准 ?小外形SOT23封装 ?无稳定电容 ?典型的TC为20ppm/°C ?典型斜率电阻0.55Ω ?2％和1％容差 ?工业温度范围 ?工作电流60μA到15mA ?“绿色”模塑化合物（无溴，锑） 应用 ?电池供电的便携式设备。 ?计量和测量系统。 ?仪表。 ?测试设备。 ?数据采集系统。 ?精密电源。 ?晶体振荡器。 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| ZR40402F41TA |
40B |
ZETEX |
05+ |
SOT-23 |
900 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
| ZR431F005TA |
43R |
ZETEX |
05+ |
SOT-23 |
0 |
电源管理ICPower Management IC/PMIC-其它Other |
查看 |
| ZR431F01TA |
43B |
ZETEX |
05+ |
SOT-23 |
0 |
电源管理ICPower Management IC/PMIC-其它Other |
查看 |
| zr431fta |
43a |
ZETEX |
05+ |
sot-23 |
0 |
电源管理ICPower Management IC/PMIC-其它Other |
查看 |
| ZR431LF01TA |
43M |
ZETEX |
04+ |
SOT-23 |
400 |
电源管理ICPower Management IC/PMIC-其它Other |
查看 |
| ZR431LF01TA |
43m |
zetex |
04+ |
sot-23 |
0 |
电源管理ICPower Management IC/PMIC-其它Other |
查看 |
| ZR431LF02TA |
43L |
ZETEX |
10+ROHS |
SOT-23 |
2800 |
电源管理ICPower Management IC/PMIC-其它Other |
查看 |
| SRL1SZR487F |
R487K |
JAT |
05+ |
3W-0.487r |
800 |
电阻Resistor-贴片电阻Chip Resistor - Surface Mount |
查看 |
|
|
|
