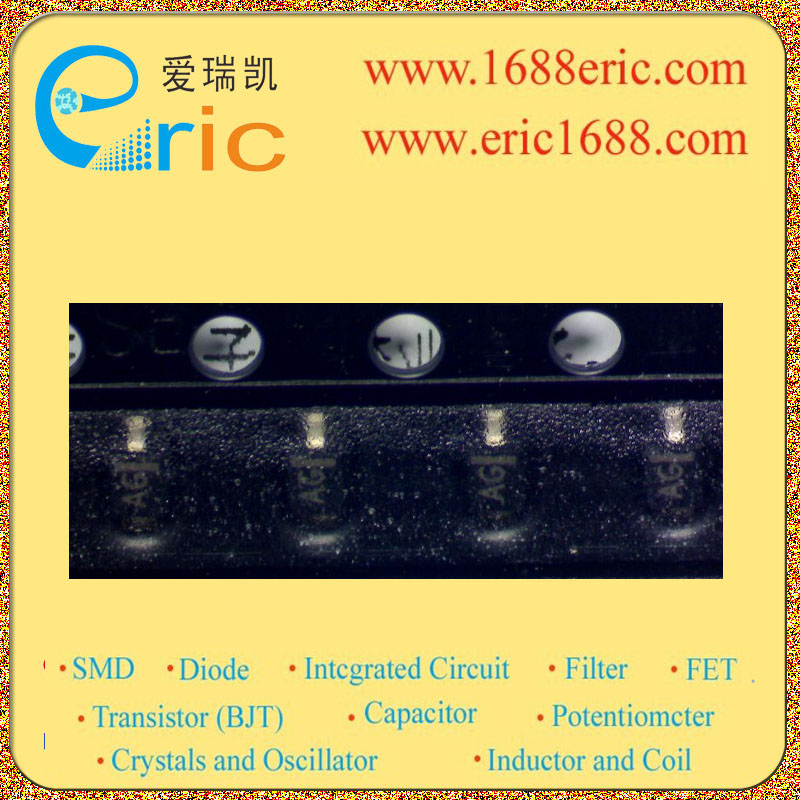

ZMV835ATA AC 的参数 |
| 反向电压VR
Reverse Voltage |
|
| 电容值C
Diode capacitance |
68.0pF |
| @反向电压VR
@Reverse Voltage |
2V |
| 电容值C
Diode capacitance |
13.6pF-10.5 |
| @反向电压VR
@Reverse Voltage |
20V |
| 电容比
Capacitance ratio |
5.0-6.5 |
| Description & Applications |
SILICON 25V HYPERABRUPT VARACTOR DIODES ZC829, ZDC833, ZMV829, ZMDC830, ZV831 Series Device description A range of silicon varactor diodes for use in frequency control and filtering. Featuring closely controlled CV characteristics and high Q. Low reverse current ensures very low phase noise performance. Available in single or dual common cathode format in a wide rage of miniature surface mount packages. Close tolerance C-V characteristics High tuning ratio Low IR (typically 200pA) Excellent phase noise performance High Q Range of miniature surface mount packages VCXO and TCXO Wireless communications Pagers Mobile radio |
| 描述与应用 |
25V硅超突变变容二极管 ZC829，ZDC833的，ZMV829，ZMDC830，ZV831系列 设备描述 硅变容二极管中使用的一系列频率控制和过滤。拥有密切 控制的CV特性和高问：低反向电流保证非常低的相位噪声 性能。可在单或双共阴极微型表面贴装封装格式的广泛的愤怒。 关闭容差C-V特性 高调谐比 低IR（通常为200PA） 出色的相位噪声性能 高Q 范围微型表面贴装封装 压控钟振和温度补偿晶体振荡器 无线通信 寻呼机 移动无线 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| ZMV832BTA |
CD |
ZETEX |
05+ |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| ZMV832BTA |
CD |
ZETEX |
05+ |
SOD-323/SC-76/0805 |
545 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| ZMV835ATA |
AC |
ZETEX |
05+ |
SOD-323/SC-76/0805 |
3000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| ZMV933ATA |
AM |
ZETEX |
06+ |
SOD-323/SC-76/0805 |
1000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| ZMV933ATA |
AM |
ZETEX |
6 |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
|
|
|
