ZDT1048TA T1048 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
17.5V |
| 集电极连续输出电流IC
Collector Current(IC) |
5A |
| 截止频率fT
Transtion Frequency(fT) |
150MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
450 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
120mV |
| 耗散功率Pc
Power Dissipation |
2750mW |
| Description & Applications |

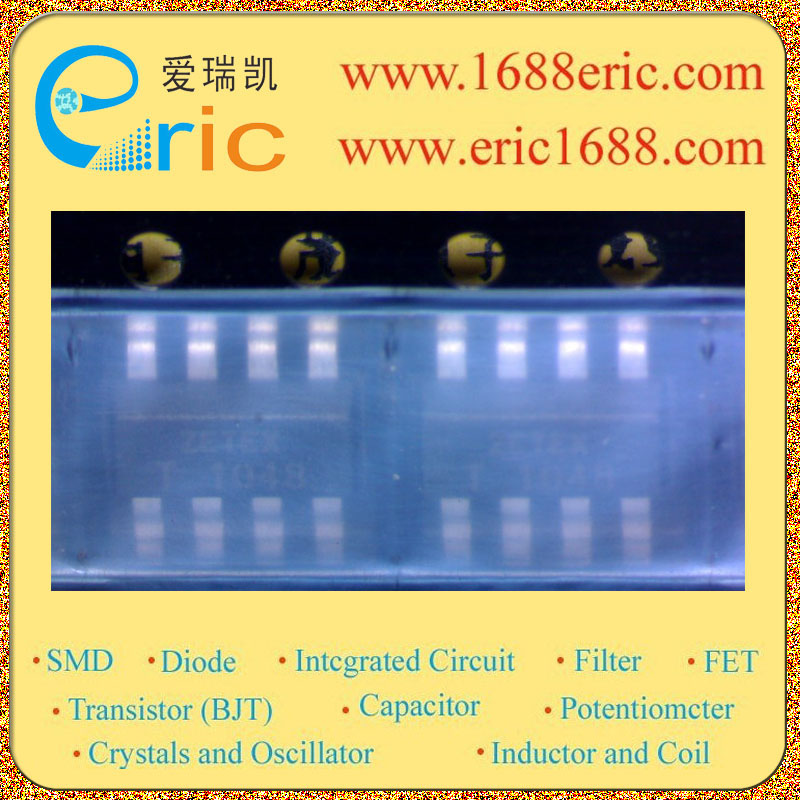

Features ? SM-8 DUAL NPN MEDIUM POWER HIGH GAIN TRANSISTORS |
| 描述与应用 |
特点 ?SM-8双NPN中等功率高增益晶体管 |
