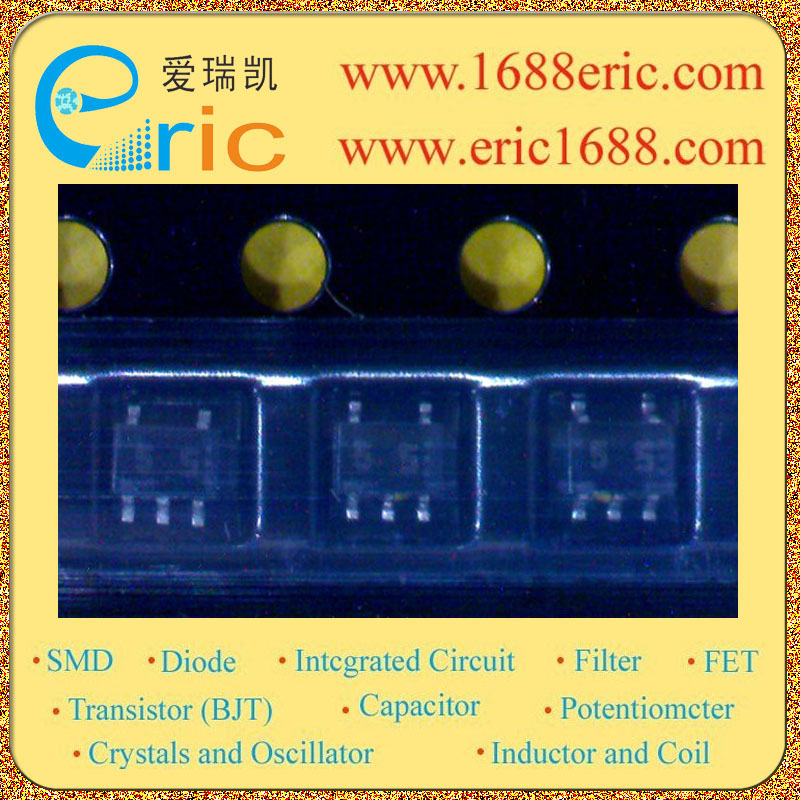

XP1504 5S 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
20V |
| 集电极连续输出电流IC
Collector Current(IC) |
300mA |
| 截止频率fT
Transtion Frequency(fT) |
80MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
500~2500 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
100mV |
| 耗散功率Pc
Power Dissipation |
150mW |
| Description & Applications |
Features ? Silicon NPN epitaxial planer transistor ? Two elements incorporated into one package(Emitter-coupled transistors) ? Reduction of the mounting area and assembly cost by one half. Applications ? For amplification of low frequency output |
| 描述与应用 |
特点 ?NPN硅外延刨床晶体管 ?两个要素纳入一个包（发射极耦合晶体管） ?减少安装面积和汇编一半的费用。 应用 ?放大低频输出 |
