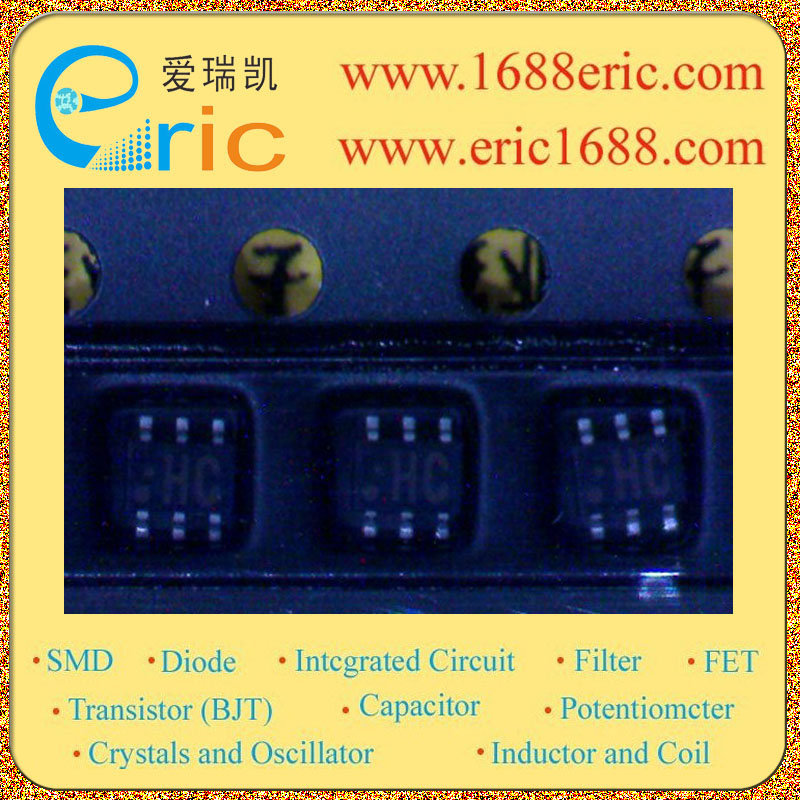

XP0431N00L HC 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V/-50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V/-50V |
| 集电极连续输出电流IC
Collector Current(IC) |
100mA/-100mA |
| 截止频率fT
Transtion Frequency(fT) |
150MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
80 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
300mV/-300mV |
| 耗散功率Pc
Power Dissipation |
150mW |
| Description & Applications |
Features ? Silicon NPN epitaxial planer transistor (Tr1) Silicon PNP epitaxial planer transistor (Tr2) ? Two elements incorporated into one package.(Transistors with built-in resistor) ? Reduction of the mounting area and assembly cost by one half. Applications ? For switching/digital circuits |
| 描述与应用 |
特点 ?NPN硅外延的刨床晶体管（TR1） 硅PNP外延刨床晶体管的（TR2） ?两个要素纳入一包装（晶体管内置电阻） ?减少安装面积和汇编一半的费用。 应用 ?对于开关/数字电路 |
