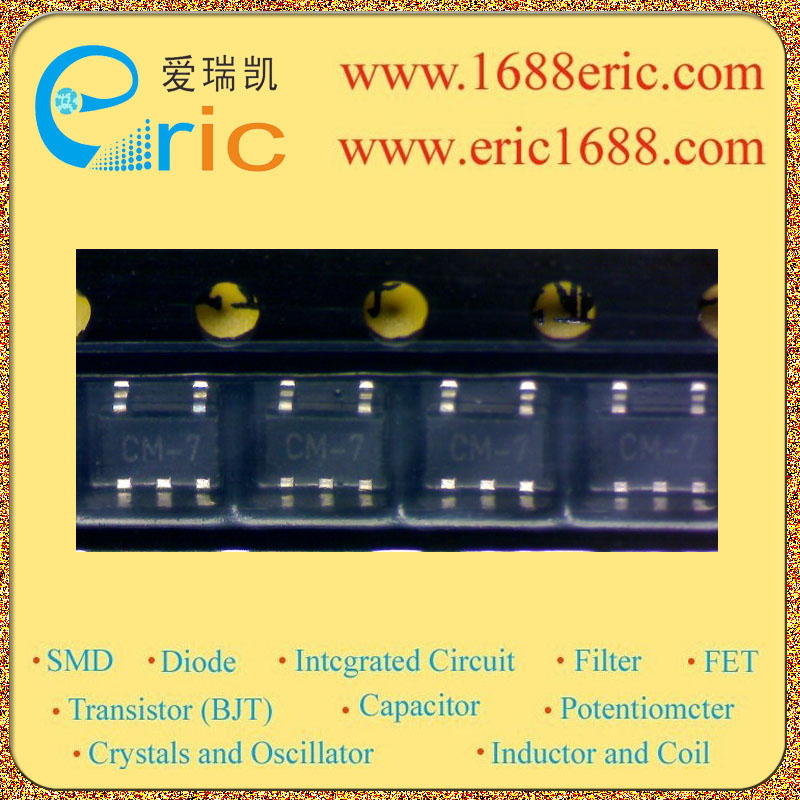

XC62GR2912MR CM 的参数 |
电路数量
Number of Regulators |
1 |
输入电压VIN
Voltage - Input |
12V |
输出电压VOUT
Voltage - Output |
2.9V |
输出电流Io
Current - Output |
160mA/0.16A |
最大压降VDO
Voltage - Dropout |
380mV/0.38V |
带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
有 Yes |
最大耗散功率Pd
Power dissipation |
150mW/0.15W |
Description & Applications |
?Positive Voltage Regulators (Output On/Off) ? CMOS Low Power Consumption ?Small Input-Output Voltage Differential : 0.2V @ 80mA, 0.38V @ 160mA ? Maximum Output Current : 150mA (VOUT = 3.0V) ? Highly Accurate : ±2% (±1%) ? Output Voltage Range: 2.1V ~ 5.0V ?Stand-by Supply Current: 0.1μA (VOUT = 3.0V) |
描述与应用 |
?正电压稳压器(输出开/关) ?CMOS低功耗 ?小输入输出电压差:0.2V@80毫安, 0.38V@160毫安 ?最大输出电流 :电流150mA(VOUT= 3.0V) ?高精度:±2%(±1%) ?输出电压范围:2.1V?5.0V? ?待机电源电流:0.1μA(VOUT= 3.0V) |
