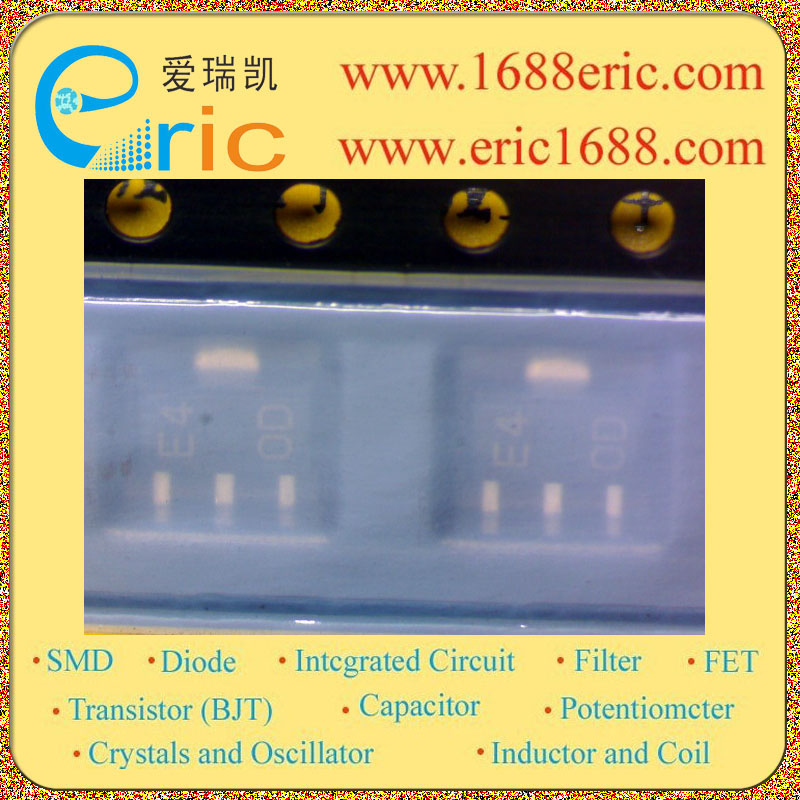

XC61AC4402PR E40 的参数 |
受检测电压数
Number of Voltages Monitored |
1 |
检测电压/复位阈值电压VDET
Voltage - Threshold |
4.4V |
工作电压VIN
Voltage - Supply |
9V |
高/低有效复位
Reset |
低 Active Low |
输出类型
Output Type |
push pull |
看门狗
Watchdog |
无 No |
功耗Pd
Power Dissipation |
500mW/0.5W |
Description & Applications |
?Low Voltage Detectors(VDF=0.8V) ?Highly accurate : ± 2% ?Low power consumption: TYP 1.0 μA [ VIN=2.0V ] ?Detect voltage range : 0.8V (N-ch open drain) ?Operating voltage range : 0.7V ~ 6.0V ?Detect voltage temperature characteristics: TYP± 100ppm/°C ?Output configuration : N-channel open drain ?Microprocessor reset circuitry ?Memory battery back-up circuits ?Power-on reset circuits ?Power failure detection ? System battery life and charge voltage monitors |
描述与应用 |
?低电压检测器(VDF= 0.8V) ?高精确度:±2% ?低功耗:典型值1.0μA[VIN= 2.0V] ?检测电压范围:0.8V(N沟道开漏) ?工作电压范围:0.7V?6.0V ?检测电压温度特性:TYP温度系数±100ppm/°C ?输出配置:N-沟道开漏 ?微处理器复位电路 ?记忆电池备份电路 ?上电复位电路 ?电源故障检测 ?系统电池寿命和充电电压监视 |
技术文档PDF下载 |
在线阅读 |
|
|
|
|
相关型号列表 |
型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
XC61AC4102MR |
E10 |
TOREX |
05+ |
SOT-23 |
2900 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
XC61AC4302PR |
E30 |
TOREX |
01+ |
SOT-89 |
0 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
XC61AC4302PR |
E30 |
TOREX |
05+ |
SOT-89 |
0 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
XC61AC4402PR |
E40 |
TOREX |
05+ |
SOT-89 |
476 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
XC61AC4502PR |
E5 |
TOREX |
05+ |
SOT-89 |
600 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
|
|
|
