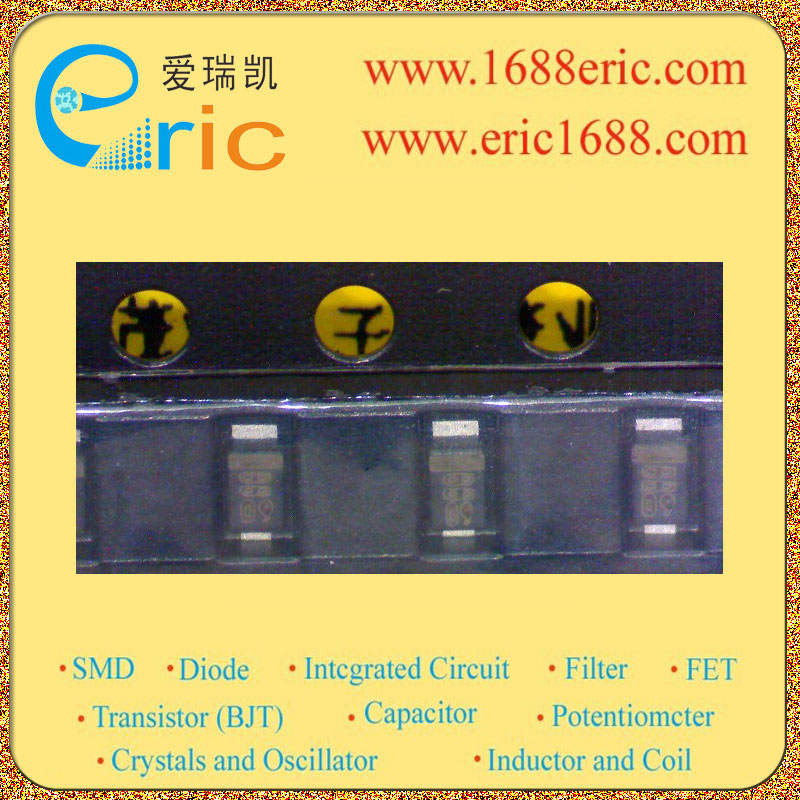

UPT12 T12 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
12V |
| 反向击穿电压VBR
Breakdown Voltage |
13.8V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
1000W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
40.3A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features ? SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS ? Powermite Package, 5 to 48 V ? Peak Pulse Power 1000 W for 8x20 Micro-second Pulse ? Clamping Time in Pico-seconds ? Integral Heat Sink / Locking Tabs ? Full Metallic Bottom Eliminates Flux Entrapment ? Bi-directional Version Available |
| 描述与应用 |
特点 ?表面贴装瞬态电压抑制器 ?POWERMITE包装，5至48 V ?峰值脉冲功率1000瓦8X20微秒脉冲 ?夹紧在微微秒时间 ?积分散热器/锁定弹片 ?全金属底部消除焊剂截留 ?双向版本 |
