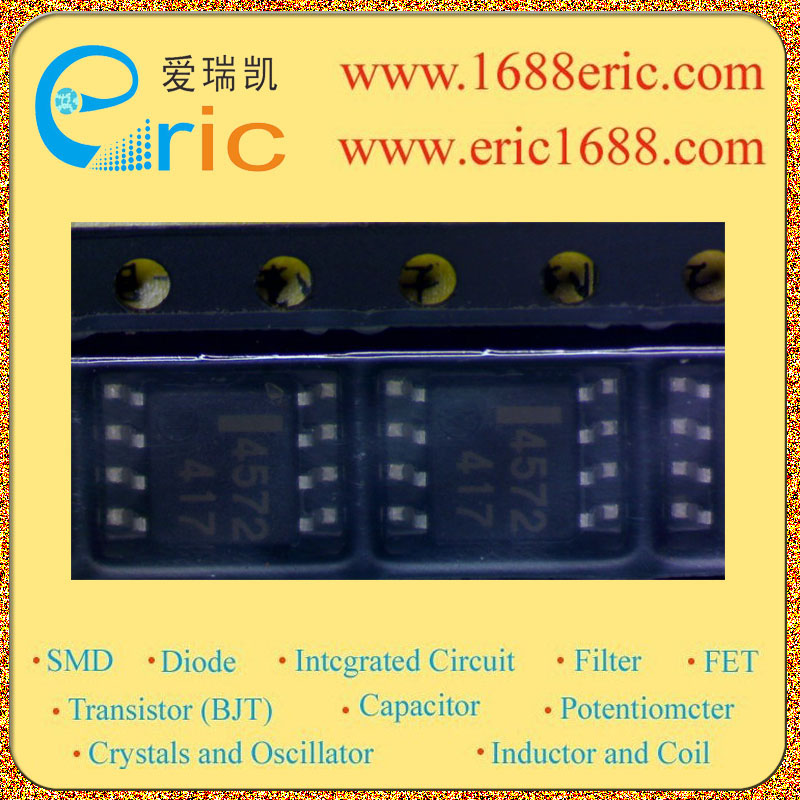

UPC4572G2 4572 的参数 |
| 电路数
Number of Circuits |
2 |
| 转换速率
Slew Rate |
4V/μs |
| 增益带宽积
Gain Bandwidth Product |
12MHz |
| 共模抑制比
Common Mode Rejection Ratio |
75dB |
| -3db 带宽
-3db Bandwidth |
|
| 输入偏置电流
Current - Input Bias |
100nA |
| 输入失调电压
Voltage - Input Offset |
5mV |
| 电源电流
Current - Supply |
4mA |
| 电流 - 输出/通道
Current - Output / Channel |
20mA |
| 电压 - 电源，单/双 (±)
Voltage - Supply, Single/Dual (±) |
4V ~14V,±2V~±7V |
| Description & Applications |
low supply voltage,ultra low-noise,high speed,wide band,low input bias current ,dual operational amplifier；Internally frequency compensation high slew rate |
| 描述与应用 |
低电压、低噪音、高转速、超宽频带、低输入偏置电流,双运算放大器内部频率补偿 高转换速率 |
