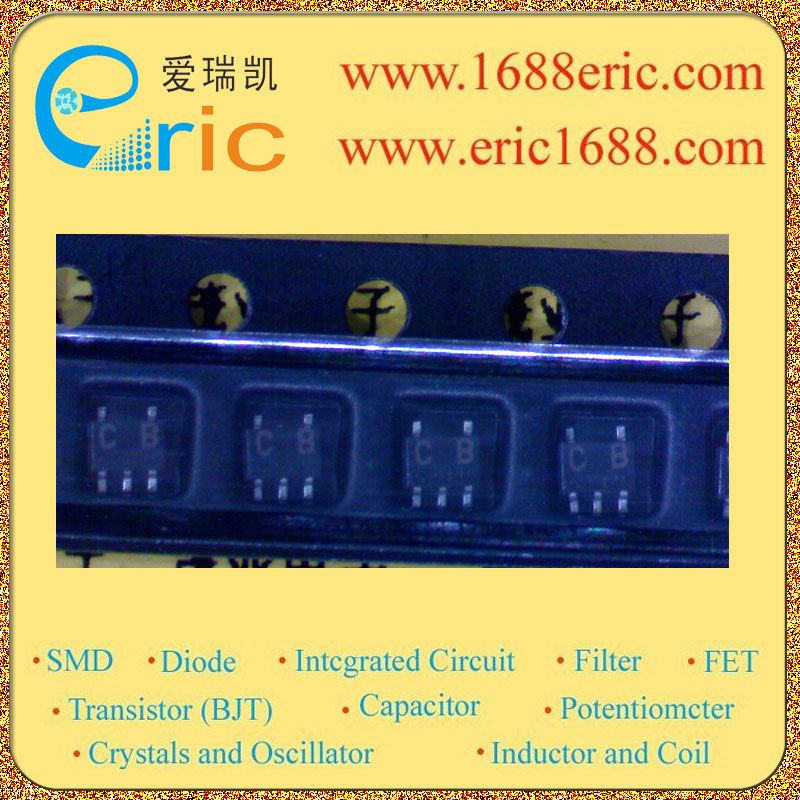

UPA573T CB 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
-30V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
7V |
| 最大漏极电流Id
Drain Current |
100mA/0.1A |
| 源漏极导通电阻Rds
Drain-Source On-State Resistance |
25?@ VGS = -4V, ID = -10mA |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
-1.6~-2.3V |
| 耗散功率Pd
Power Dissipation |
200mW/0.2W |
| Description & Applications |
P-CHANNEL MOS FET (5-PIN 2 CIRCUITS) FOR SWITCHING The uPA573T is a super-mini-mold device provided with two MOS FET circuits. It achieves high-density mounting and saves mounting costs. FEATURES ? Two source common MOS FET circuits in package the same size as SC-70 ? Directly driven by ICs having a 3 V power supply ? Automatic mounting supported |
| 描述与应用 |
P沟道MOS FET（5-PIN2电路） 对于开关 uPA573T是一个超小型模具装置 两个MOS FET电路。它实现了高密度安装 并节省了安装成本。 特点 ?两个源常见的MOS场效应管电路的包 SC-70相同的尺寸 ?直接驱动有3 V电源的IC ?支持自动安装 |
