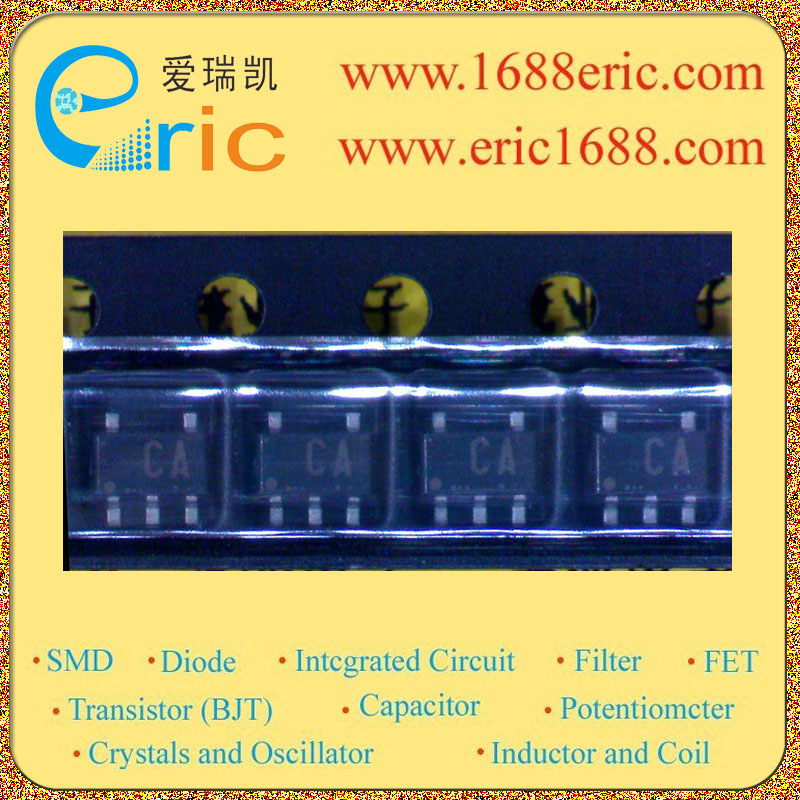

UPA503T CA 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
-50V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
16V |
| 最大漏极电流Id
Drain Current |
-100mA/-0.1A |
| 源漏极导通电阻Rds
Drain-Source On-State Resistance |
60?@ VGS = -10V, ID = -10mA |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
-1.5~-2.5V |
| 耗散功率Pd
Power Dissipation |
300mW/0.3W |
| Description & Applications |
The uPA503T is a mini-mold device provided with two MOS FET circuits. It achieves high-density mounting and saves mounting costs. FEATURES ? Two source common MOS FET circuits in package the same size as SC-59 ? Complement to uPA502T ? Automatic mounting supported |
| 描述与应用 |
UPA503T是一个小型的模具装置，其具有 两个MOS FET电路。它实现了高密度安装 并节省了安装成本。 特点 ?两个源常见的MOS场效应管电路包 SC-59相同的尺寸 ?补充uPA502T的 ?支持自动安装 |
