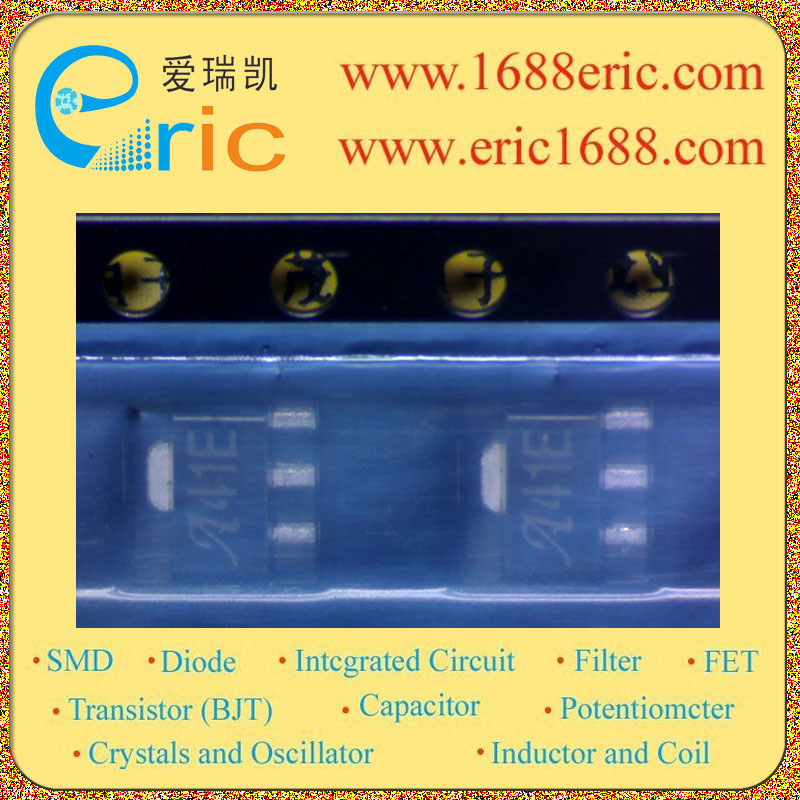

型号： |
A3141ELTTR |
| 标记/丝印/代码/打字： |
41E |
| 厂家： |
ALLEGRO |
| 封装： |
SOT-89 |
| 批号： |
05+ |
| 库存数量： |
88 |
| 所属分类： |
集成电路ICIntegrated Circuit（IC）
霍尔ICHALL IC |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
A3141ELTTR 41E 的参数 |
| 感应范围
Sensing Range |
37/-40G跳闸，31/-34G释放 37/-40G Trip，31/-34G Release |
| 类型
Type |
霍尔效应开关 Hall Effect Switch |
| 电源电压
Voltage - Supply |
4.5-24V |
| 电源电流
Current - Supply |
9mA |
| 输出电流
Current - Output (Max) |
10μA |
| Description & Applications |
SENSITIVE HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION These Hall-effect switches are monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150°C, and are more stable with both temperature and supply voltage changes. The unipolar switching characteristic makes these devices ideal for use with a simple bar or rod magnet. The four basic devices (3141, 3142, 3143, and 3144) are identical except for magnetic switch points. Each device includes a voltage regulator for operation with supply voltages of 4.5 to 24 volts, reverse battery protection diode, quadratic Hall-voltage generator, temperature compensation circuitry, smallsignal amplifier, Schmitt trigger, and an open-collector output to sink up to 25 mA. With suitable output pull up, they can be used with bipolar or CMOS logic circuits. The A3141– and A3142– are improved replacements for the UGN/UGS3140–; the A3144– is the improved replacement for the UGN/UGS3120–. The first character of the part number suffix determines the device operating temperature range. Suffix ‘E–’ is for the automotive and industrial temperature range of -40°C to +85°C. Suffix ‘L–’ is for the automotive and military temperature range of -40°C to +150°C. Three package styles provide a magnetically optimized package for most applications. Suffix ‘–LT’ is a miniature SOT89/TO-243AA transistor package for surface-mount applications; suffix ‘–U’ is a three-lead plastic mini-SIP, while suffix ‘–UA’ is a three-lead ultra-mini-SIP. FEATURES and BENEFITS Superior Temp. Stability for Automotive or Industrial Applications 4.5 V to 24 V Operation … Needs Only An Unregulated Supply Open-Collector 25 mA Output … Compatible with Digital Logic Reverse Battery Protection Activate with Small, Commercially Available Permanent Magnets Solid-State Reliability Small Size Resistant to Physical Stress |
| 描述与应用 |
敏感的霍尔效应开关 对于高温操作 这些霍尔效应开关是单片集成电路与 收紧磁性的规格，设计连续操作 扩展温度范围为150℃下，更稳定的，与两个 温度和电源电压的变化。单极开关 特性使这些器件非常适合用一个简单的酒吧或棒 磁铁。的四个基本设备（3141，3142，3143，3144）是 相同的，除了磁开关点。 每个器件包括一个电压调节器的操作与供应 4.5至24伏的电压，电池反向保护二极管，二次 霍尔电压发生器，温度补偿电路，小信号放大器，施密特触发器和集电极开路输出下沉 高达25 mA。用合适的输出拉起来，他们可以用 双极或CMOS逻辑电路。 A3141和A3142-提高替代的UGN/UGS3140-; A3144是 改进更换为UGN/UGS3120-。 型号后缀的第一个字符决定了设备 工作温度范围。后缀“E”是为汽车和 工业温度范围为-40°C至+85°C。后缀“L”是 汽车和军用温度范围为-40°C至+150°C。三 包装样式提供磁性优化的封装最 的应用程序。后缀LT是的一个缩影SOT89/TO-243AA晶体管 封装表面贴装应用;后缀U是三铅 塑料小型SIP，而后缀UA是一个三引脚超小型SIP。 高级温度。适用于汽车或工业应用的稳定性 4.5 V至24 V的操作只需要一个不受管制的供应 开路集电极25 mA输出兼容数字逻辑 反向电池保护 市售小，永久磁铁激活 固态可靠性 小型 抗物理应力 |
