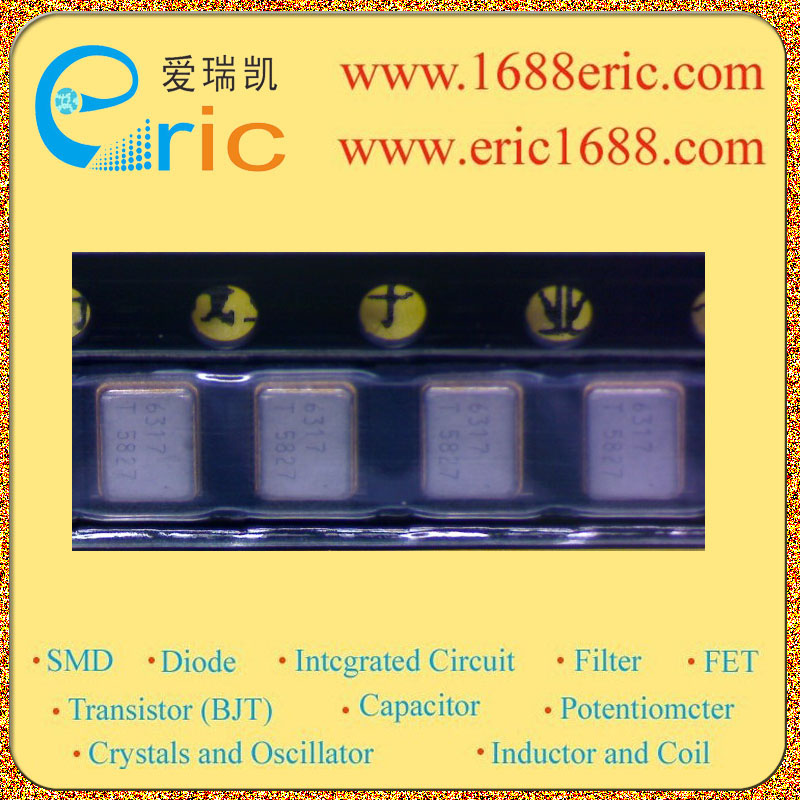

TSX-3225.36MHZ 6317 的参数 |
| 标准频率
Frequency |
36.000MHz |
| 频率容差(ppm)
Frequency Tolerance |
±10ppm |
| 频率稳定性(ppm)
Frequency Stability |
±15ppm |
| 负载电容
Load Capacitance |
16pF |
| 串联电阻ESR
ESR (Equivalent Series Resistance) |
40Ω |
| 震荡模式
Operating Mode |
Fundamental |
| 频率老化
Ageing |
±1ppm |
| Description & Applications |
TSX - 3225 Thickness : 0.6 mm Max.(TSX-3225) Applications : Mobile phone, Bluetooth, W-LAN, ISM band radio, Clock for MPU |
| 描述与应用 |
TSX - 3225 厚度：0.6毫米最大。（TSX-3225） 应用领域：移动电话，蓝牙，W-LAN，ISM频段电台广播，MPU时钟 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| TSX-3225.32MHZ |
6100 |
epson |
04+ |
3225 |
43 |
晶振滤波Crystal Oscillator and Filter-晶振Crystal Oscillator-晶体Crystal |
查看 |
| TSX-3225.36MHZ |
6317 |
epson |
04+ |
3225 |
10 |
晶振滤波Crystal Oscillator and Filter-晶振Crystal Oscillator-晶体Crystal |
查看 |
| TSX-3225 32MHZ |
|
epson |
05+ |
3225 |
100 |
晶振滤波Crystal Oscillator and Filter-晶振Crystal Oscillator-晶体Crystal |
查看 |
| TSX-3225/FA-238 |
|
CHINA |
10+ |
3225 |
0 |
晶振滤波Crystal Oscillator and Filter-晶振Crystal Oscillator-晶体Crystal |
查看 |
| TSX-3225S36MHZ |
|
epson |
05+ |
3225 |
100 |
晶振滤波Crystal Oscillator and Filter-其它Other |
查看 |
|
|
|
