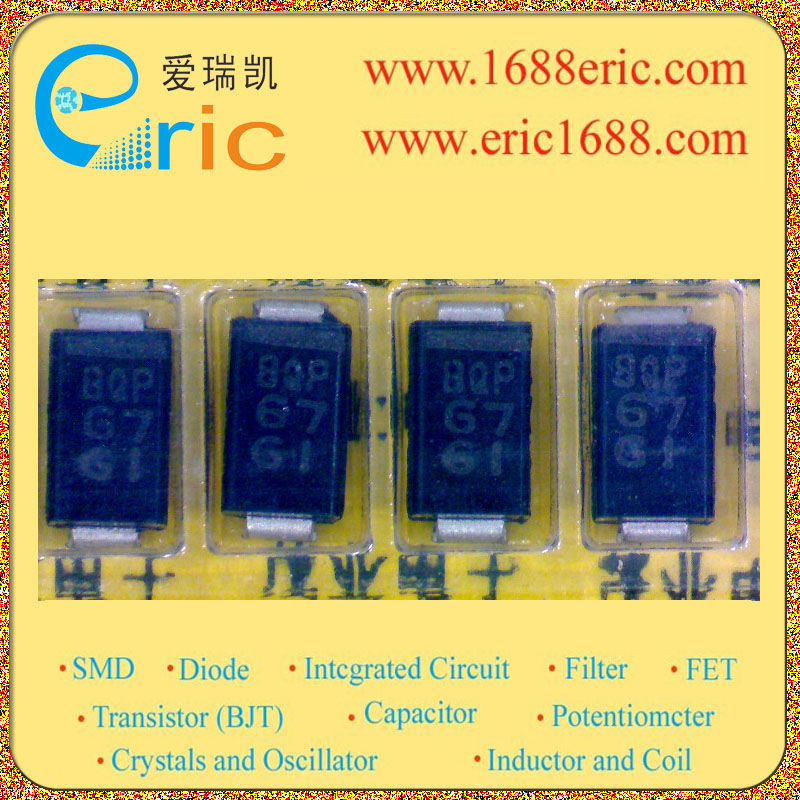

TPSMA33 BQP 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
26.8V |
| 反向击穿电压VBR
Breakdown Voltage |
33V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
400W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
8.4A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Surface Mount Automotive Transient Voltage Suppressors；Specification Features: ? Vishay Semiconductors formerly General Semiconductor ? Surface Mount Automotive Transient Voltage Suppressors ? Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ? Ideal for automated placement ? Low profile package ? Built-in strain relief ? Exclusive patented PAR?oxide passivated chip construction ? 400W peak pulse power capability with a 10/1000ms waveform, repetition rate (duty cycle): 0.01% ? Excellent clamping capability ? Low incremental surge resistance ? Very fast response time ? For devices with V(BR) ≥ 10V ID are typically less than 1.0mA at TA = 150°C ? Designed for under the hood surface mount applications ? High temperature soldering:250°C/10 seconds at terminals |
| 描述与应用 |
表面贴装汽车 瞬态电压抑制器;规格特点： ?威世半导体原通用半导体 ?表面贴装汽车瞬态电压抑制器 ?塑料包装有保险商实验室可燃性分类94V-0 ?适合自动放置 ?薄型包装 ?内置应变救灾 ?独家专利的PAR?氧化物钝化建设的 ?400W峰值脉冲功率能力与一个的10/1000ms波形，重复率（占空比）：0.01％ ?出色的钳位能力 ?低增量浪涌电阻 ?非常快的响应时间 ?设备V（BR）≥10V ID通常小于1.0mA在TA= 150°C ?专为引擎盖下的表面贴装 应用程序 ?高温焊接：250°C/10秒钟码头 |
