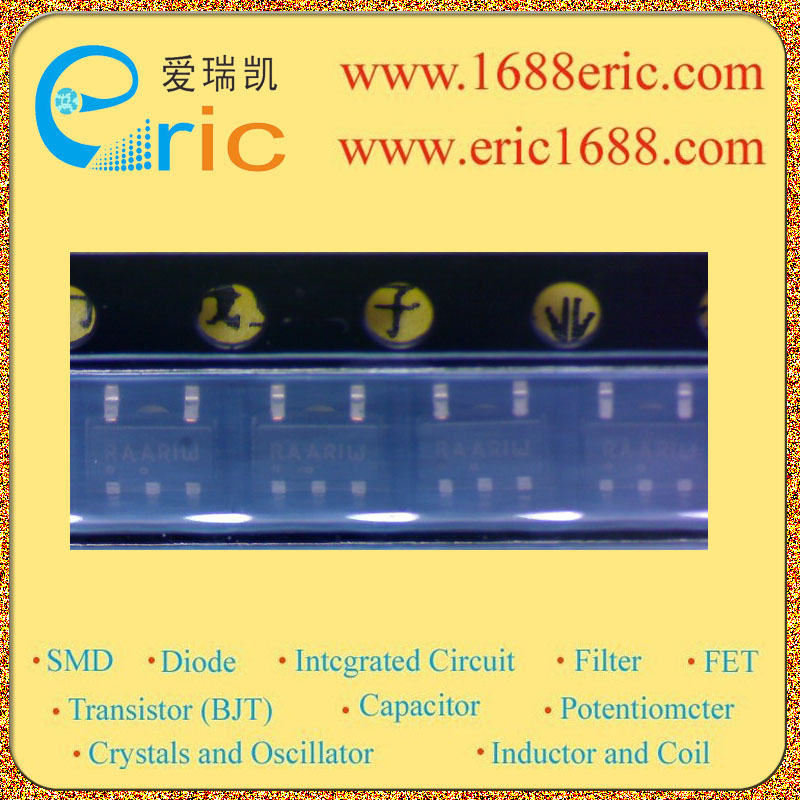

TLV431ASNT1G RAA 的参数 |
| 参考类型
Reference Type |
旁路，可调节，精度 Shunt, Adjustable, Precision |
| 输出电压Vo
Voltage - Output |
1.24 V ~ 16 V |
| 误差
Tolerance |
±1% |
| 温度系数
Temperature Coefficient |
|
| 输入电压
Voltage - Input |
1.24 V ~ 16 V |
| 阴极电流
Current - Cathode |
80μA |
| 输出电流IOUT
Current - Output |
20mA |
| Description & Applications |
FEATURES ? Low Voltage Precision Adjustable Shunt Regulator ? Programmable Output Voltage Range of 1.24 V to 16 V ? Voltage Reference Tolerance 1.0% for A Series and 0.5% for B Series ? Sharp Low Current Turn?On Characteristic ? Low Dynamic Output Impedance of 0.20 from 100 A to 20 mA ? Wide Operating Current Range of 50 A to 20 mA ? Micro Miniature TSOP?5, SOT?23?3 and TO?92?3 Packages ? Pb?Free Package is Available Applications ? Low Output Voltage (3.0 V to 3.3 V) Switching Power Supply Error Amplifier ? Adjustable Voltage or Current Linear and Switching Power Supplies ? Voltage Monitoring ? Current Source and Sink Circuits ? Analog and Digital Circuits Requiring Precision References ? Low Voltage Zener Diode Replacements |
| 描述与应用 |
特点 ?低电压精密可调并联稳压器 ?可编程输出电压范围为1.24 V至16 V ?参考电压误差A系列的1.0％和B系列的0.5％ ?夏普低电流导通特性 ?低动态输出阻抗为0.20欧姆从100A至20 mA ?宽工作电流范围为50A至20 mA ?微小型TSOP-5，SOT-23-3，TO-92-3封装 ?无铅包装是可用 应用 ?低输出电压（3.0 V至3.3 V）开关电源误差放大器 ?可调电压或电流线性和开关式电源 ?电压监控 ?电流源和接收电路 ?模拟和数字电路需要精密参考 ?低电压齐纳二极管更换 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| TLV431ACDBV |
VAH |
TEXAS |
05+NOPB2150 |
SOT-153/SOT23-5 |
350 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
| TLV431ACDBV7 |
YA |
ON |
05NOPB |
SOT-153/TSOP-5/SOT23-5 |
0 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
| TLV431ASNT1G |
RAAEX |
ON |
06nopb |
SOT-153/TSOP-5/SOT23-5 |
0 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
| TLV431ASNT1G |
RAA |
ON |
05+NOPB |
SOT-153/TSOP-5/SOT23-5 |
1000 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
| TLV431BSN1T1 |
RAGT |
ON |
05+NOPB |
SOT-23 |
1000 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
| TLV431BSNT1 |
RAHWC |
on |
05+nopb |
SOT-153/TSOP-5/SOT23-5 |
0 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
| TLV431BSN1T1g |
RAGT |
on |
05+nopb |
SOT-23 |
0 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
|
|
|
