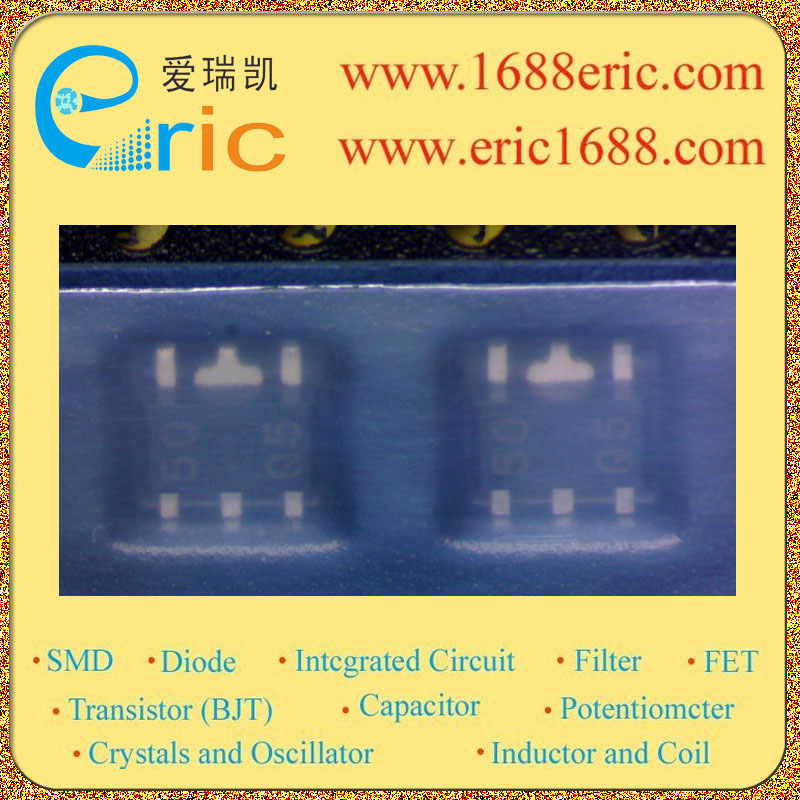

TK11350UTB 50 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
16V |
| 输出电压VOUT
Voltage - Output |
5V |
| 输出电流Io
Current - Output |
150mA/0.15A |
| 最大压降VDO
Voltage - Dropout |
290mV/0.29V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
有 Yes |
| 最大耗散功率Pd
Power dissipation |
800mW/0.8W |
| Description & Applications |
?VOLTAGE REGULATOR WITH ON/OFF SWITCH ?High Voltage Precision at ± 2.4% ?Active High On/Off Control ?Very Low Dropout Voltage 80 mV at 30 mA ?Very Low Noise ? Internal Thermal Shutdown ? Short Circuit Protection ? Battery Powered Systems ?Cellular Telephones ? Pagers ?Personal Communications Equipment ? Portable Instrumentation ?Portable Consumer Equipment ? Radio Control Systems ?Toys ?Low Voltage Systems |
| 描述与应用 |
?ON/ OFF开关稳压器 ?高电压精度为±2.4％ ?高电平开/关控制 ?非常低压差电压80毫伏，在30 mA ?非常低噪声 ?内部热关断 ?短路保护 ?电池供电系统 ?蜂窝电话 ?寻呼机 ?个人通信设备 ?便携式仪表 ?便携式消费电子设备 ?无线控制系统 ?玩具 ?低电压系统 |
