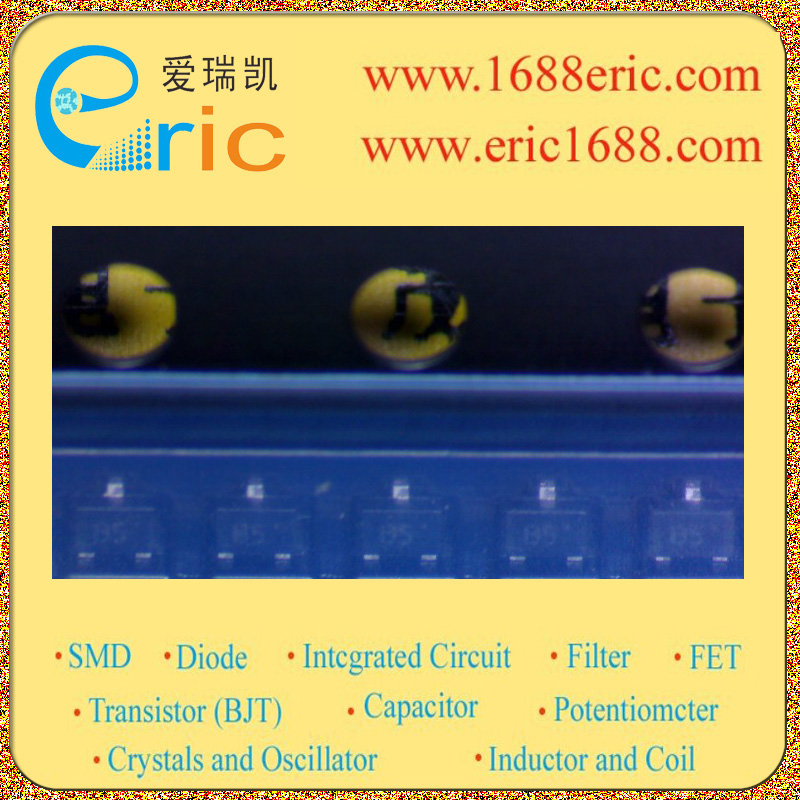

TF222B-B5A-TL-E B5 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
20v |
| 栅源极击穿电压V(BR)GS
Gate-Source Voltage |
-20v |
| 漏极电流(Vgs=0V)IDSS
Drain Current |
0.21~0.35ma |
| 关断电压Vgs(off)
Gate-Source Cut-off Voltage |
-0.1~-1v |
| 耗散功率Pd
Power Dissipation |
100mW/0.1W |
| Description & Applications |
N-channel Silicon Junction FET Condenser Microphone Applications Features ? Especially suited for use in condenser microphone for audio equipments and telephones. ? TF222B is possible to make applied sets smaller and thinner. ? Excellent voltage characteristic. ? Excellent transient characteristic. ? Adoption of FBET process. |
| 描述与应用 |
N沟道硅结型场效应管 电容式麦克风的应用特点 特别适合用于电容式麦克风的音频设备和电话。 ?TF222B可以使应用集更小，更薄。 ?优秀的电压特性。 ?出色的瞬态特性。 ?通过过程FBET。 |
