型号： |
TC7WBL125AFK |
| 标记/丝印/代码/打字： |

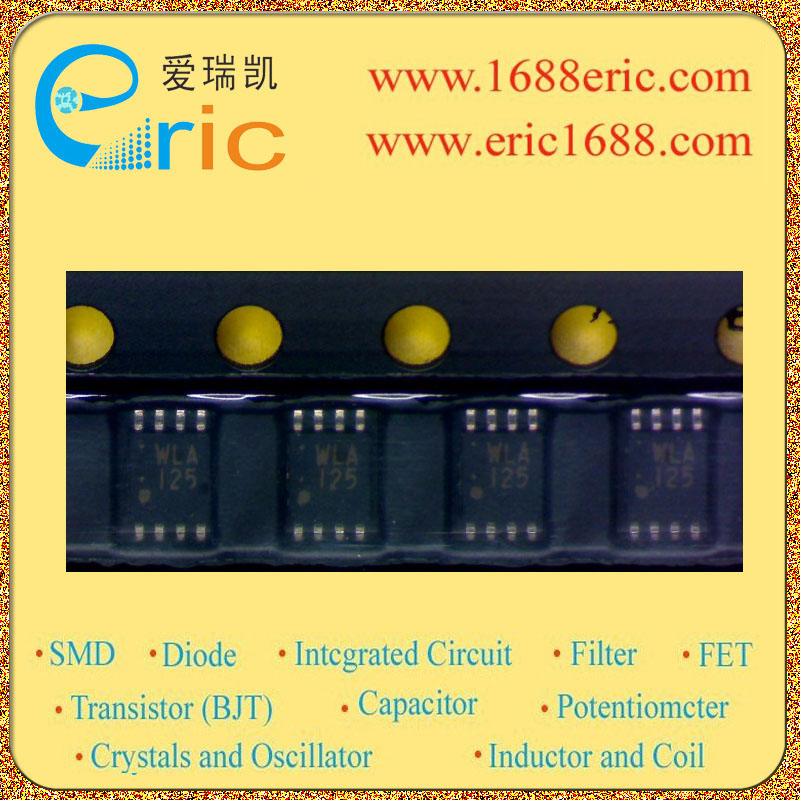

WLA125 |
| 厂家： |
TOSHIBA |
| 封装： |
VFSOP8/US8 |
| 批号： |
06+PB |
| 库存数量： |
50 |
| 所属分类： |
集成电路ICIntegrated Circuit（IC）
逻辑电路Logic circuit
解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
TC7WBL125AFK WLA125 的参数 |
| 类型
Type |
总线开关 Bus Switch |
| 电路
Circuit |
|
| 独立电路
Independent Circuits |
|
| 输出高，低电流
Current - Output High, Low |
|
| 单电源
Voltage Supply Source |
单电源 Single Supply |
| 电源电压
Voltage - Supply |
2 V ~ 3.6 V |
| Description & Applications |
The TC7WBL125AFK provides two bits of low-voltage, high-speed bus switching. The low ON-resistance of the switch allows connections to be made with minimal propagation delay and while maintaining CMOS low power dissipation. The device comprises dual 2-bit switches with separate bus enable ( OE ) signals. When OE is low, the switch is on and port A is connected to port B. When OE is high, the switch is off and a high-impedance state exists between the two ports. All inputs are equipped with protection circuits to guard against static discharge. Operating voltage range: VCC = 2 to 3.6 V High speed: tpd = 0.31 ns (max) @ 3 V Ultra-low ON-resistance: RON = 5 ? (typ.) @ 3 V ESD performance: Machine model ≥ ±200 V Human body model ≥ ±2000 V Power-down protection provided on inputs ( OE input only) Package: US8 |
| 描述与应用 |
TC7WBL125AFK提供2位低电压，高速总线开关。低导通电阻的开关允许以最小的传播延迟连接，同时保持CMOS的低功耗。该器件包括2位开关，双独立总线使能（OE）信号。当OE低，开关打开，端口A连接到端口B。当OE高，开关处于关闭状态，高阻抗状态之间存在着两个端口。所有输入都配有保护电路，以防止静电放电。 工作电压范围：VCC=3.6 V 高速：TPD =0.31NS（最大值）@3 V 超低导通电阻：RON= 5Ω（典型值）@3 V ESD性能：机器型号≥±200 V 人体模式≥±2000 V 掉电保护提供输入（OE输入） 包装：US8 |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| TC7WBL125AFK |
WLA125 |
TOSHIBA |
06+PB |
VFSOP8/US8 |
50 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
