型号: |
TC7SH32F |
标记/丝印/代码/打字: |

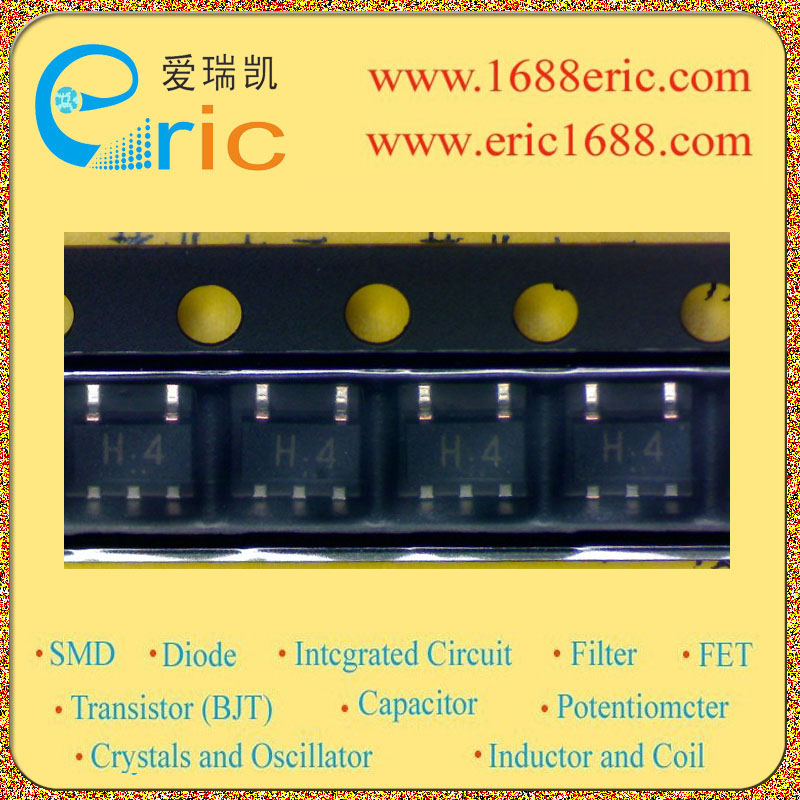

H4 |
厂家: |
TOSHIBA |
封装: |
SOT-153/SMV |
批号: |
12+ROHS |
库存数量: |
438166 |
所属分类: |
集成电路ICIntegrated Circuit(IC) 逻辑电路Logic circuit 逻辑门Gate |
技术文档PDF: |
在线阅读(1) (2) |
|
|
在线购买 |
|
|
|
|
TC7SH32F H4 的参数 |
逻辑类型
Logic Type |
或门 OR Gate |
电路数
Number of Circuits |
1 |
输入数
Number of Inputs |
2 |
电源电压Vcc
Voltage - Supply |
2v~5.5v |
静态电流Iq
Current - Quiescent (Max) |
2uA |
输出高,低电平电流
Current - Output High, Low |
-8mA,8mA |
低逻辑电平
Logic Level - Low |
0.5v |
高逻辑电平
Logic Level - High |
1.5v |
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL |
7.5ns @ 4.5V ~ 5.5V,50pF |
Description & Applications |
2-Input OR Gate ;? High speed operation : tpd = 3.8ns (typ.) at VCC = 5V, 15pF ? Low power dissipation : ICC = 2μA (max) at Ta = 25°C ? High noise immunity : VNIH = VNIL = 28% VCC (min) ? 5.5-V tolerant inputs ? Wide operating voltage range : VCC= 2 to 5.5V |
