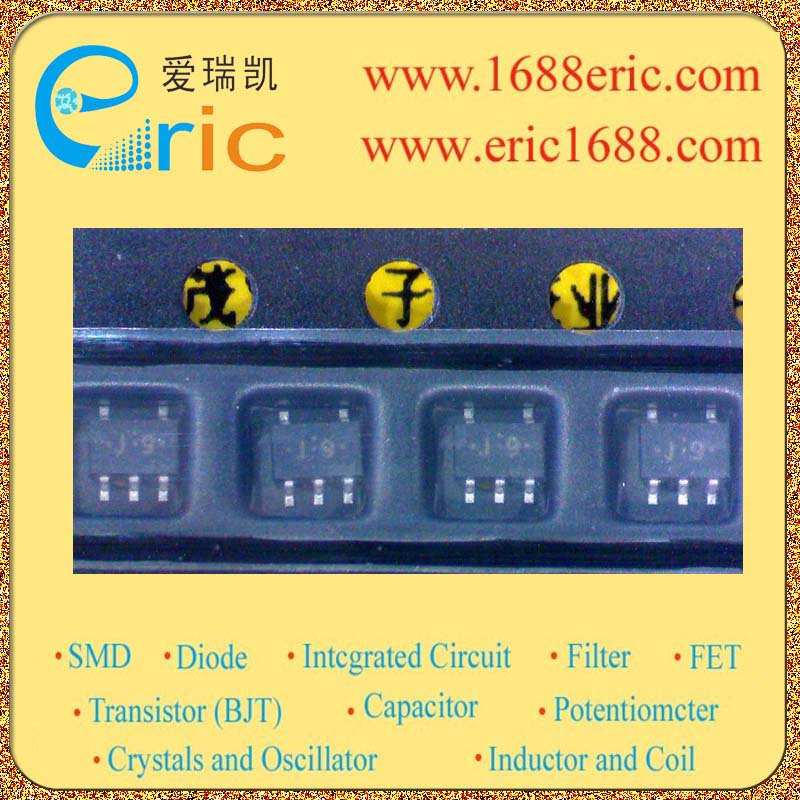

TC7SB66FU J9 的参数 |
| 开关配置
Circuit |
单总线开关 Single Bus Switch |
| 导通电阻
On-State Resistance |
5Ω/Ohm |
| 电源电压
Voltage - Supply |
2V~5.5 V |
| Description & Applications |
Single Bus Switch CMOS digital integrated circuit silicon monolithic The TC7SB66FU is a low on-resistance, high-speed CMOS 1-bit bus switch. This bus switch allows the connections or disconnections to be made with minimal propagation delay while maintaining Low power dissipation which is the feature of CMOS. When output enable (OE) is at High level, the switch is on; when at Low level, the switch is off. P-MOS and N-MOS channel block means the device is suitable for analog signal transmission. Operating voltage: VCC = 2~5.5 V |
| 描述与应用 |
单总线开关 CMOS数字集成电路硅单片 TC7SB66FU是一个低导通电阻，高速CMOS1-bit总线开关。该总线开关允许连接或 断开保持最小的传播延迟以保持低功耗。 当输出使能（OE）为高电平时，开关是开着的; 在低级别时，开关处于关闭状态。 P-MOS和N-MOS通道块的装置，该器件适合 为模拟信号的传输。 工作电压：VCC= 2?5.5 V |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| TC7SB384FU |
JF |
TOSHIBA |
05NOPB43RM+200 |
SOT-353/USV |
297200 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB384FU |
JF |
TOSHIBA |
05+9Knopb |
SOT-353/USV |
15000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB385FU |
JK |
TOSHIBA |
12+ROHS |
SOT-353/USV |
4300 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB66FU |
J9 |
TOSHIBA |
04+ROHS |
SOT-353/SC70-5/USV |
9000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| TC7SB66FU |
J9 |
TOSHIBA |
11+ROHS |
SOT-353/SC70-5/USV |
132100 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| TC7SBD385FU |
JL |
TOSHIBA |
05+ |
SOT-353/USV |
3000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SBL384AFU |
JN |
TOSHIBA |
10+ROHS |
SOT-353/USV |
72000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SBL384AFU |
JN |
TOSHIBA |
10+ROHS |
SOT-353/USV |
27000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SBD385AFU |
JT |
TOSHIBA |
0926+ROHS |
SOT-353/USV |
3000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB3157CFU |
JW |
TOSHIBA |
11+NOPB |
SOT-363/SC70-6/US6 |
2800 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB3157CFU |
JW |
TOSHIBA |
11+rohs |
SOT-363 |
6000 |
集成电路ICIntegrated Circuit（IC）-其它Other |
查看 |
|
|
|
