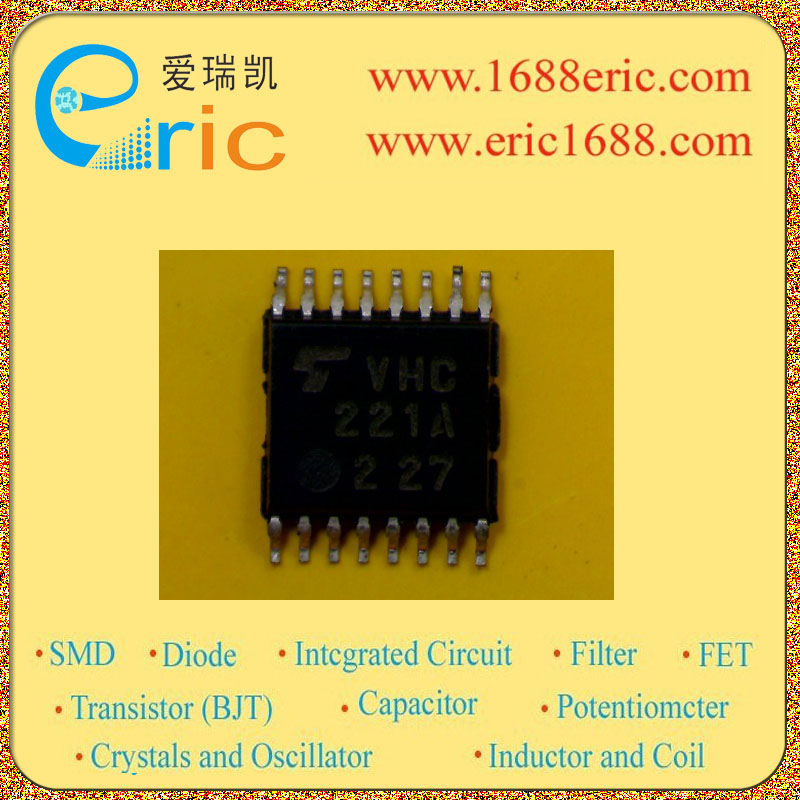

TC74VHC221A VHC221A 的参数 |
| 逻辑类型
Logic Type |
单稳态 Monostable |
| 独立电路
Independent Circuits |
1 |
| 施密特触发器输入
Schmitt Trigger Input |
无 No |
| 传播延迟
Propagation Delay |
10.3ns |
| 输出高，低电流
Current - Output High, Low |
20mA，20mA |
| 电源电压
Voltage - Supply |
2 V ~ 5.5 V |
| Description & Applications |
Dual Monostable Multivibrator Non-Retriggerble The TC74VHC123A/221A are high speed CMOS MONOSTABLE MULTIVIBRATOR fabricated with silicon gate C2MOS technology. There are two trigger inputs, A input (negative edge), and B input (positive edge). These inputs are valid for a slow rise/fall time signal (tr = tf = 1 s) as they are schmitt trigger inputs. This device may also be triggered by using CLR input (positive edge). After triggering, the output stays in a MONOSTABLE state for a time period determined by the external resistor and capacitor (RX, CX). A low level at the CLR input breaks this state. Limits for CX and RX are: External capacitor, CX: No limit External resistor, RX: VCC = 2.0 V more than 5 kΩ VCC ≥ 3.0 V more than 1 kΩ An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 V to 3 V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages. "Features ? High speed: tpd = 8.1 ns (typ.) at VCC = 5 V ? Low power dissipation Standby state: 4 μA (max) at Ta = 25°C Active state: 600 μA (max) at Ta = 25°C ? High noise immunity: VNIH = VNIL = 28% VCC (min) ? Power down protection is equipped with all inputs. ? Balanced propagation delays: tpLH ?～ tpHL ? Wide operating voltage range: VCC (opr) = 2 to 5.5 V ? Pin and function compatible with 74HC123A/221A" |
| 描述与应用 |
双单稳多谐振荡器 TC74VHC123A/221A是高速CMOS 单稳态触发器制作与硅栅 C2MOS技术。 有两个触发输入，A输入（负沿），和B 输入（正面边缘）。这些投入是有效的一个缓慢的上升/下降（TR = TF=1秒）的时间信号，因为它们是施密特触发输入。这 设备也可以被触发通过使用CLR输入（上升沿）。 触发后，输出保持在一个单稳态 一段时间内由外部电阻器和电容器 （RX，CX）。 CLR输入在低水平打破这种状态。 CX和RX的限制是：外部电容，CX：不限制 外部电阻器，RX：VCC= 2.0 V超过5kΩ的VCC≥3.0 V超过1kΩ的 输入保护电路确保0到5.5 V可 没有考虑到电源电压施加到输入引脚。 该装置可用于接口5 V3 V系统和两个 如电池供电系统备份。该电路防止 由于设备破坏不匹配的电源和输入电压。 ?高速：TPD = VCC= 5 V8.1纳秒（典型值） ?低功耗 待机状态：4μA（最大值）在大= 25°C 活动状态：600μA（最大值）在大= 25°C ?高噪声，免疫力：VNIH= VNIL=28％VCC（分钟） ?掉电保护是所有输入配备。 ?平衡传输时延：TPLH - TPHL ?宽工作电压范围：VCC（OPR）=2至5.5 V ?引脚和功能兼容74HC123A/221A“ |
