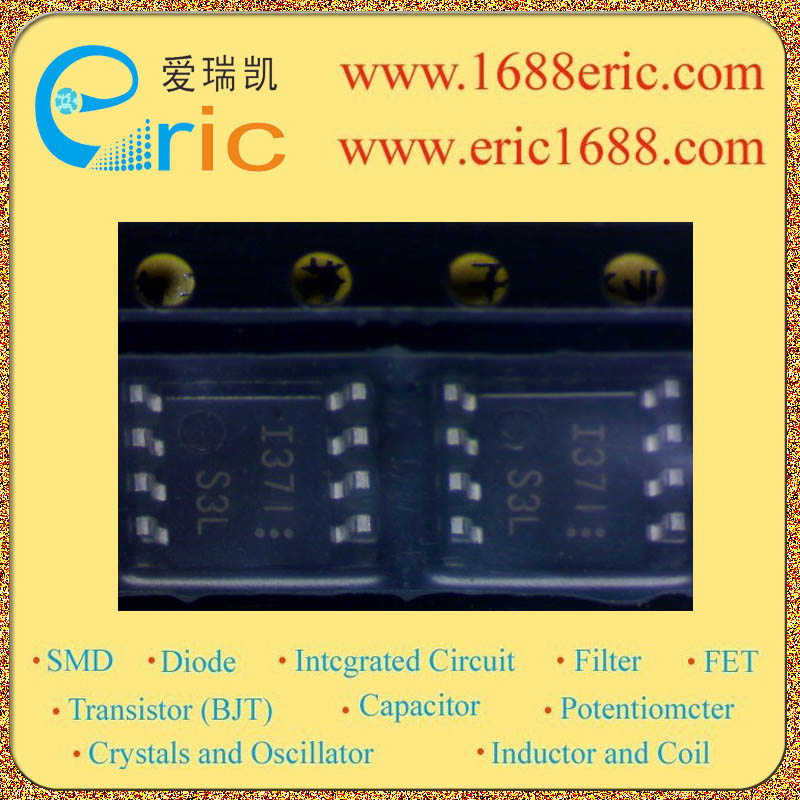

SVC371S-TL I371 的参数 |
| 反向电压VR
Reverse Voltage |
16V |
| 电容值C
Diode capacitance |
460pF-540pF |
| @反向电压VR
@Reverse Voltage |
1V |
| 电容值C
Diode capacitance |
19pF-26pF |
| @反向电压VR
@Reverse Voltage |
8V |
| 电容比
Capacitance ratio |
18.5 |
| Description & Applications |
Diffused Junction Type Sillicon Diode Composite Varactor Diode for AM Receiver Low-Voltage Electronic Tuning Applications Excellent large-input characteristics because of dual varactor composite type The number of manufacturing processes can be reduced and automatic mounting is possible because of composite type High capacitance ratio and high quality factor Facilitates tuning circuit configuration because the cathodes of three dual-type elements are separated from each other, resulting in almost no interelement coupling Possible to offer the SVC371 devices in a tape reel packaging Surface mount type |
| 描述与应用 |
扩散结型酸化镍硅二极管 复合变容二极管AM接收 低电压电子调谐应用 由于是双变容复合型，有着优秀的大输入特性 由于是复合型，可以减少制造工艺的数量，并自动安装 高电容率和高品质因子 便于调谐电路配置三个双型的元件，因为阴极是彼此分开的，从而几乎没有元件间的耦合 可以提供SVC371设备磁带卷筒包装 表面贴装型 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| SVC341L |
VAL |
SANYO |
05+ |
SOT-89 |
5410 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
| svc341 |
vA |
SANYO |
05+ |
SOT-89 |
1000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
| SVC343 |
VC |
SANYO |
05+ |
SOT-89 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
| SVC347S |
V1 |
SANYO |
05+ |
SOT-23/SC-59 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
| SVC347S |
V1 |
SANYO |
06+NOPB |
SOT-23/SC-59 |
523 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
| SVC371S-TL |
I371 |
SANYO |
05+ |
SOP-8 |
22 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors) |
查看 |
| SVC383S |
V3 |
SANYO |
05+ |
SOT-23/SC-59 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
|
|
|
