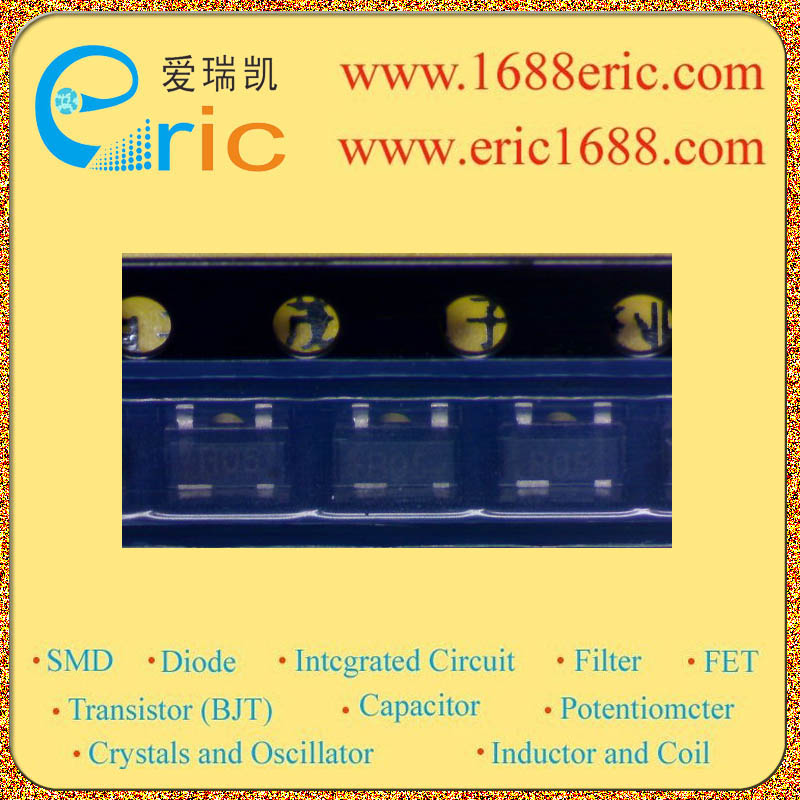

SR05.TCT R05 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
500W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
25A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features ? Low Capacitance TVS Diode Array ? ESD protection to IEC 61000-4-2, Level 4 ? Array of surge rated diodes with internal TVS Diode ? Protects two I/O lines ? Low capacitance (<10pF) for high-speed interfaces ? Low clamping voltage ? Low operating voltage: 5.0V ? Solid-state silicon-avalanche technology Applications ? USB Power & Data Line Protection ? Ethernet 10BaseT ? Video Line Protection ? T1/E1 secondary IC Side Protection ? Portable Electronics ? Microcontroller Input Protection ? WAN/LAN Equipment ? ISDN S/T Interface |
| 描述与应用 |
特点 ?低电容TVS二极管阵列?IEC61000-4-2第4级ESD保护 ?额定浪涌二极管阵列内部TVS二极管 ?保护两个I / O线 ?低电容（<10pF的）高速接口 ?低钳位电压 ?低工作电压：5.0V ?固态硅雪崩技术 应用 ?USB电源及数据线保护 ?10BaseT以太网 ?视频线路保护 ?T1/E1次要的IC侧保护 ?便携式电子产品 ?微控制器输入保护 ?广域网/局域网设备 ?ISDN S/ T接口 |
