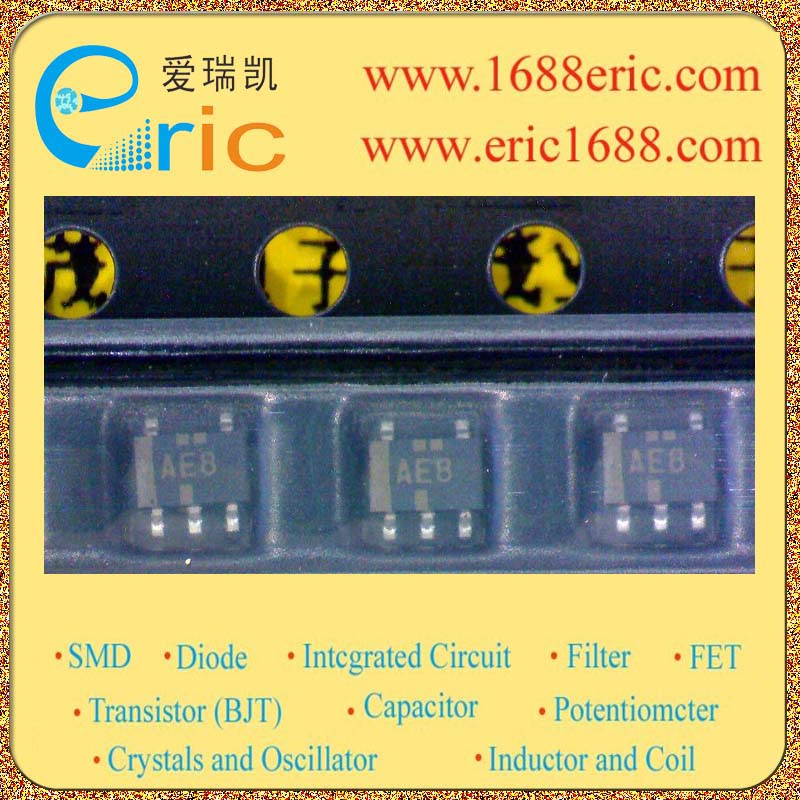

型号： |
SN74AHC1G08HDCKR |
| 标记/丝印/代码/打字： |
AEH |
| 厂家： |
TEXAS |
| 封装： |
SOT-353/SC70-5/SC-88A |
| 批号： |
05+ |
| 库存数量： |
0 |
| 所属分类： |
集成电路ICIntegrated Circuit（IC）
逻辑电路Logic circuit
逻辑门Gate |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
SN74AHC1G08HDCKR AEH 的参数 |
| 逻辑类型
Logic Type |
与门 AND Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2v~5.5v |
| 静态电流Iq
Current - Quiescent (Max) |
10uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA,8mA |
| 低逻辑电平
Logic Level - Low |
0.5v~1.65v |
| 高逻辑电平
Logic Level - High |
1.5v~3.85v |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
3.4nS @ 5V, 50pF |
| Description & Applications |
SINGLE 2-INPUT POSITIVE-AND GATE ；Operating Range of 2 V to 5.5 V Switching speed typ3.7ns(@Vcc=3v,CL=15pf) All inputs VLH(MAX)=5.5v(@Vcc=0 to 5.5v) |
| 描述与应用 |
单路2输入正与门;2 V至5.5 V的工作范围 的开关速度typ3.7ns（@ VCC=3V，CL=15PF） 所有输入VLH（MAX）= 5.5V（VCC =0至5.5V） |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| SN74AHC1G08DBVR |
a08 |
TEXAS |
04+ |
SOT-153/SOT23-5/SC-74A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G08DBVR |
AO8 |
TEXAS |
05+NOPB200 |
SOT-153/SOT23-5/SC-74A |
3570 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G08DCK3 |
AEY |
TEXAS |
06+ROHS |
SOT-353/SC70-5/SC-88A |
3000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G08DCKR |
AE |
TEXAS |
05+nopb3500 |
SOT-353/SC70-5/SC-88A |
3990 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G08HDCK3 |
AEH |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
2500 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G08HDCKR |
AEH |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G08HDCKR |
AE |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
20000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G08DCKR |
AES |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G08DCK3 |
AEY |
TEXAS |
0636NOPB |
SOT-353/SC70-5/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G08DCKR |
AE |
TEXAS |
05NOPB |
SOT-353/SC70-5/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
