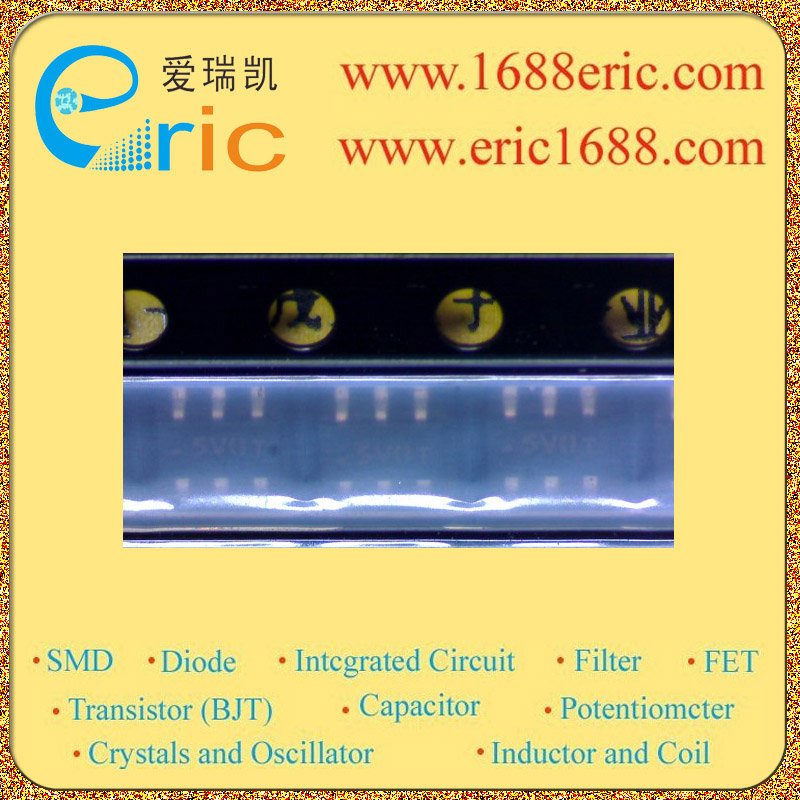

SMS05T1 5V08 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
6.6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
350W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.225W/225mW |
| Description & Applications |
FEATURES ? SC-74 Quad Transient Voltage Suppressor for ESD Protection ? SC-74 Package Allows Four Separate Unidirectional Configurations ? Peak Power – 350 Watts, 8 x 20 S ? ESD Rating of Class N (Exceeding 25 kV) per the Human Body Model ? ESD Rating: IEC 61000–4–2 (ESD) 15 kV (air) 8 kV (contact) IEC 61000–4–4 (EFT) 40 Amps (5/50 ns) IEC 61000–4–5 (lightning) 23 Amps (8/20 s) ? UL Flammability Rating of 94V–0 Typical Applications: ? Hand Held Portable Applications such as Cell Phones, Pagers, Notebooks and Notebook Computers |
| 描述与应用 |
特点 ?SC-74四瞬态电压抑制器ESD保护 ?SC-74包装允许四个独立的单向配置 ?峰值电力 - 350瓦，8×20？ ?N类（超过25 kV）每人体模型ESD额定值 ?ESD额定值： IEC 61000-4-2（ESD）15 kV（空气）8 kV（接触） IEC61000-4-4（EFT）40安培（5/50毫微秒） IEC61000-4-5（闪电）23安培（8/20·S） ?UL94V-0阻燃等级 典型应用： ?手持便携式应用，如手机，寻呼机，笔记本电脑和笔记本电脑 |
