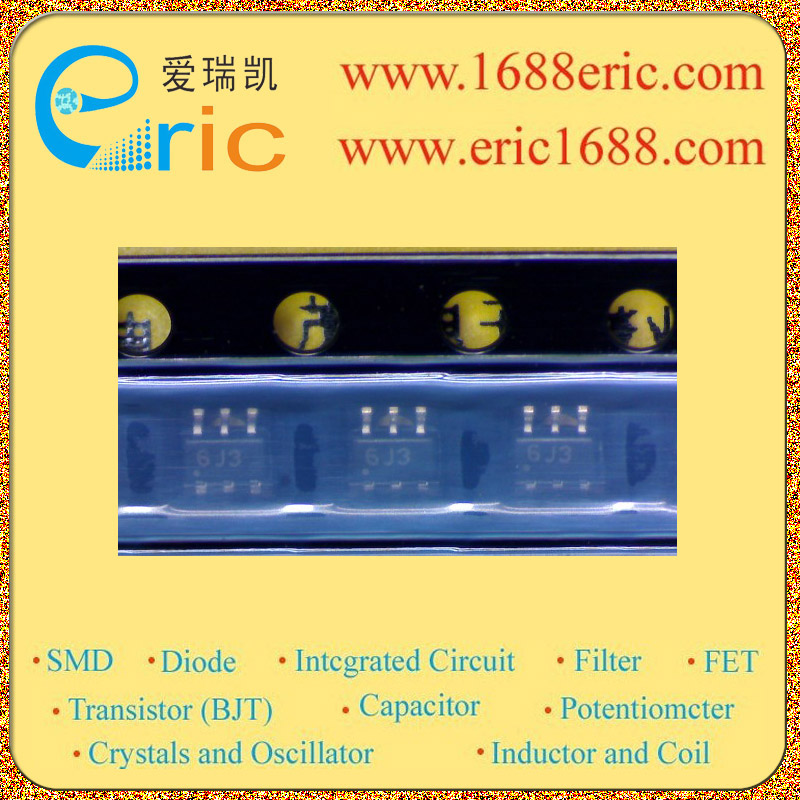

SMF05CT2 6J3 的参数 |
| 极性
Polarization |
|
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
7.2V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
100W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
8A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
5-Line Transient Voltage Suppressor Array This 5?line voltage transient suppressor array is designed for application requiring transient voltage protection capability. It is intended for use in over?transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC?88 package. Features ? Protects up to 5?Line in a Single SC?88 Package ? Peak Power Dissipation ? 100 W (8 x 20 s Waveform) ? ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model. ? Compliance with IEC 61000?4?2 (ESD) 15 kV (Air), 8 kV (Contact) ? Flammability Rating of UL 94 V?0 ? Pb?Free Package is Available Applications ? Hand?Held Portable Applications ? Networking and Telecom ? Automotive Electronics ? Serial and Parallel Ports ? Notebooks, Desktops, Servers |
| 描述与应用 |
5线路瞬态电压 抑制器阵列 这5线瞬态电压抑制器阵列是专为 申请，要求瞬态电压保护能力。这是 拟用于在瞬态过电压和ESD敏感的 如电脑，打印机，汽车电子设备， 网络通信和其他应用程序。此设备 设有一个单片共阳极保护设计5 独立的线路在一个单一的SC-88封装。 特点 ?保护5行，在一个单一的SC-88封装 ?峰值功耗 - 100 W（8×20的波形） ?3B级（超过8 kV）ESD额定值每人体模型 每机模型和C类（超过400 V）。 ?符合IEC 61000-4-2（ESD）15 kV（空气），8 kV（联系） ?阻燃等级UL 94 V-0 ?无铅包装是可用 应用 ?手持便携式应用 ?网络和电信 ?汽车电子 ?串行和并行端口 ?笔记本电脑，台式机，服务器 |
