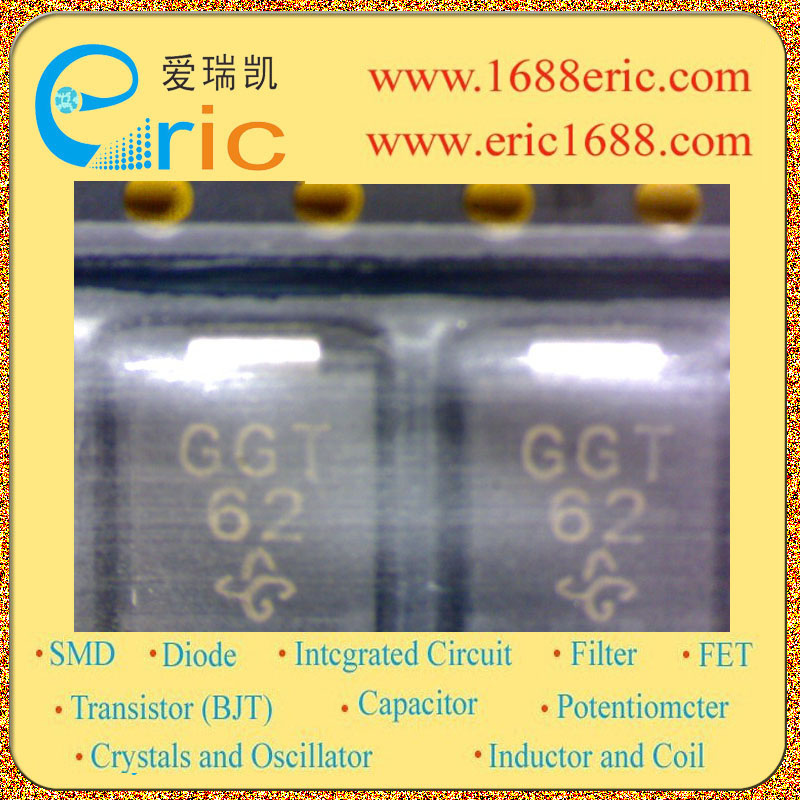

SMCJ78CA GGT 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
78V |
| 反向击穿电压VBR
Breakdown Voltage |
91.25V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
1500W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
11.9A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features ?Surface Mount Transient Voltage Suppressors ?Underwriters Laboratory Recognition under UL standard for safety 497B: Isolated Loop Circuit Protection ?Low profile package with built-in strain relief for surface mounted applications ?Glass passivated junction ?Low incremental surge resistance, excellent clamping capability ?1500W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01% ?Very fast response time ?High temperature soldering guaranteed:250°C/10 seconds at terminals |
| 描述与应用 |
特点 ?表面贴装瞬态电压抑制器 ?保险商实验室认可497B：隔离安全回路的电路保护 ?薄型包装内置应变救灾表面安装应用 ?玻璃钝化结 ?低增量浪涌性，优良的钳位能力 ?1500W峰值脉冲功率能力与10/1000μS波形，重复率（占空比）：0.01％ ?非常快的响应时间 ?高温焊接保证：在码头250°C/10秒 |
