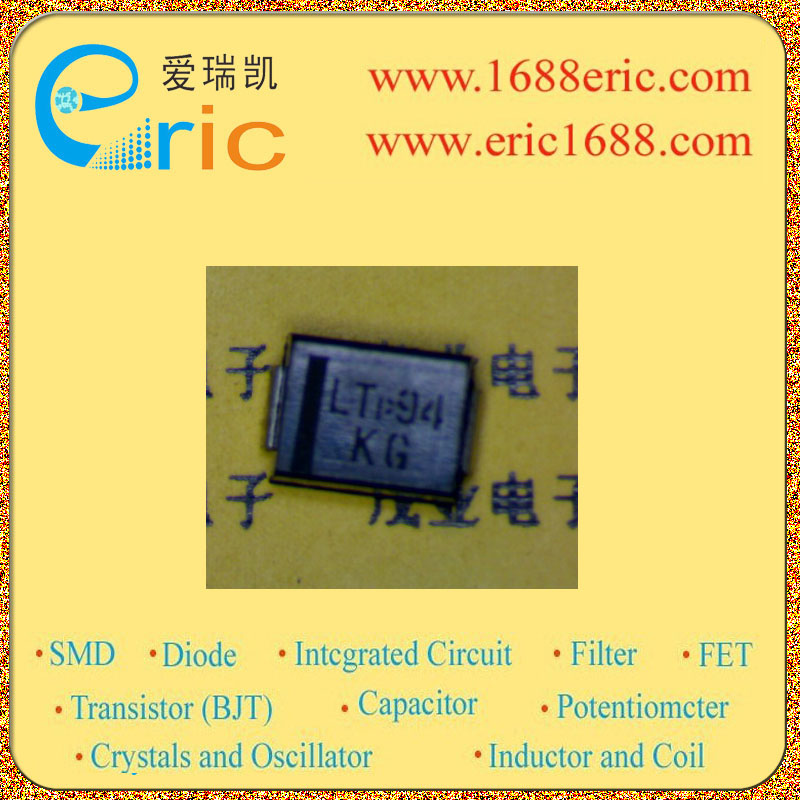

SMBJ6.0A-13 KG 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
6.0V |
| 反向击穿电压VBR
Breakdown Voltage |
7.02V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
600W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
58.3A |
| 额定耗散功率Pd
Power dissipation |
1.5W |
| Description & Applications |
FEATURES ?SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS ?For surface mounted applications ?Reliable low cost construction utilizing molded plastic technique ?Plastic material has UL flammability classification 94V-O ?Typical IR less than 1uA above 10V ?Fast response time: typically less than 1.0ns for ?Uni-direction,less than 5.0ns for Bi-direction,form 0 Volts to BV min |
| 描述与应用 |
特点 ?表面贴装单向和双向瞬态电压抑制器 ?对于表面安装应用 ?可靠的低造价利用塑料成型技术 ?塑料材料具有易燃性分类UL94V-O ?典型IR10V以上??低于1uA ?快速响应时间：通常小于1.0ns的 ?统一方向，小于5.0ns为双向，形式0伏特至BV分钟 |
