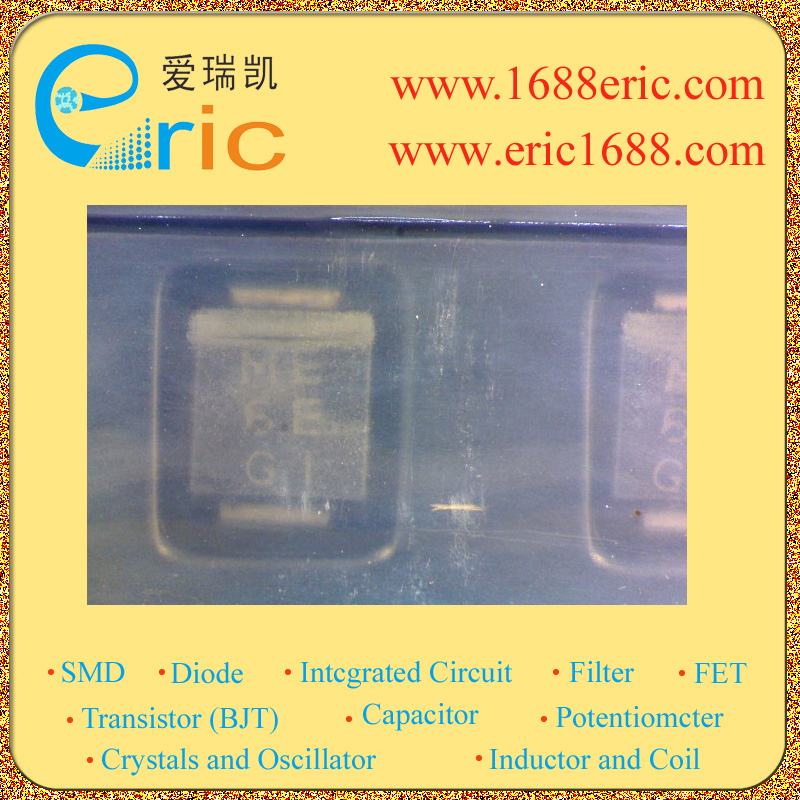

SMBJ26A-13 ME 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
26V |
| 反向击穿电压VBR
Breakdown Voltage |
31.05V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
600W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
14.2A |
| 额定耗散功率Pd
Power dissipation |
5W |
| Description & Applications |
Features ? 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR ? 600W Peak Pulse Power Dissipation ? 5.0V - 170V Standoff Voltages ? Glass Passivated Die Construction ? Uni- and Bi-Directional Versions Available ? Excellent Clamping Capability ? Fast Response Time ? Lead Free Finish/RoHS Compliant (Note 1) ? Green Molding Compound (No Halogen and Antimony) |
| 描述与应用 |
特点 ?600W表面贴装瞬态电压抑制器 ?600W峰值脉冲功率耗散 ?断态电压5.0V - 170V ?玻璃钝化模施工 ?单向和双向版本 ?出色的钳位能力 ?快速响应时间 ?铅涂层/符合RoHS标准（注1） ?绿色模塑化合物（无卤素和锑） |
