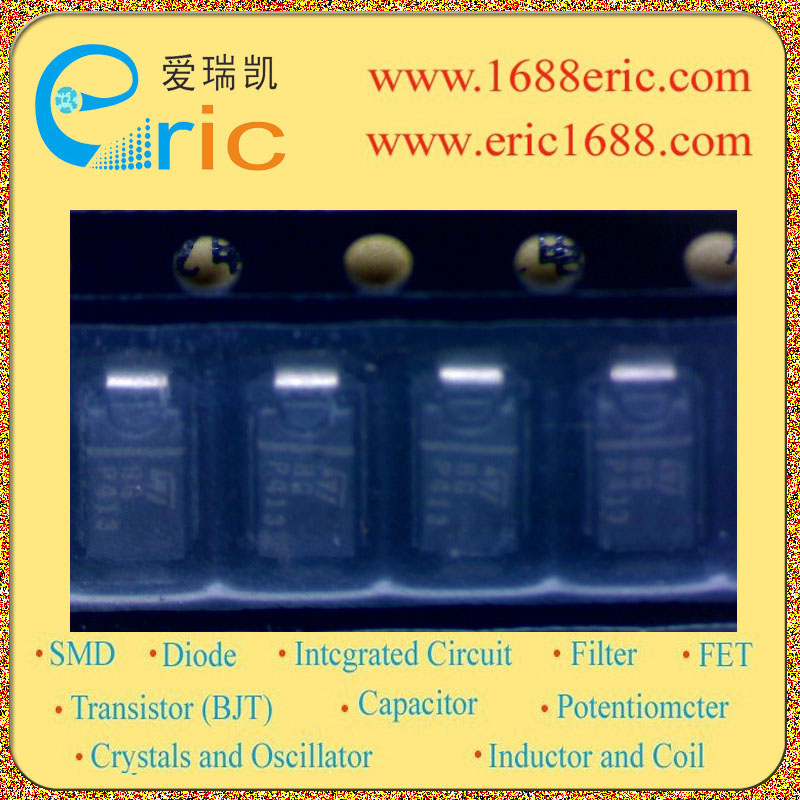

SMAJ13A-TR BG 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
13V |
| 反向击穿电压VBR
Breakdown Voltage |
15.15V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
400W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
18.6A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
FEATURES ? Surface Mount Transient Voltage Suppressors ? Low profile package ? Ideal for automated placement ? Glass passivated chip junction ? Available in uni-directional and bi-directional ? 400 W peak pulse power capability with a10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % (300 W above 78 V) ? Excellent clamping capability ? Very fast response time ? Low incremental surge resistance ? Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C ? Solder dip 260 °C, 40 s ? Component in accordance to RoHS 2002/95/EC |
| 描述与应用 |
特点 ?表面贴装瞬态电压抑制器?薄型包装 ?适合自动放置 ?玻璃钝化结 ?可提供单向和双向 ?400瓦峰值脉冲功率能力与a10/1000微秒波形，重复频率（工作周期）：0.01％（高于78 V300 W） ?出色的钳位能力 ?非常快的响应时间 ?低增量浪涌电阻 ?会见MSL每1，J-STD-020，LF最大峰值为260°C ?浸焊260°C，40秒 ?组件按照RoHS 2002/95/EC |
