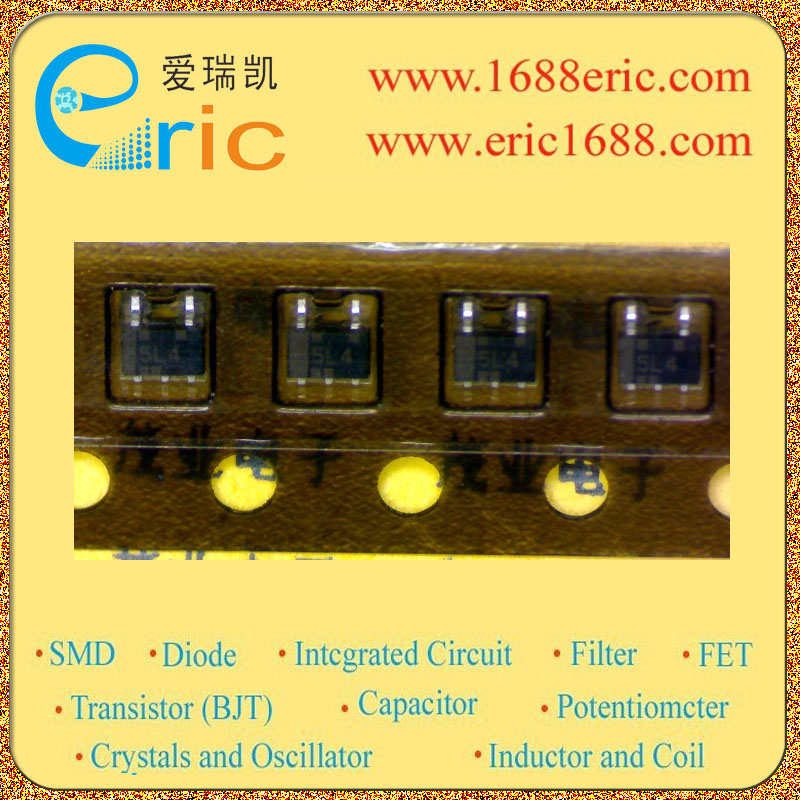

S-75L32ANC 5L4 的参数 |
| 逻辑类型
Logic Type |
或门 OR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
1.0V~3.6V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-2.6mA，2.6mA |
| 低逻辑电平
Logic Level - Low |
0.25V~0.9V |
| 高逻辑电平
Logic Level - High |
0.75V~2.1V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
7ns @ 3V，25pF |
| Description & Applications |
Features MINI LOGIC SERIES 2 INPUT OR GATE Wide power supply range: 1 V to 3.6 V Low current consumption: 1.0 μA max (at 3.6 V, 25°C) Typical propagation delay: tPD = 7 ns (at 3 V) High noise immunity: VNIH = VNIL = 28% VCC min Power down protection: All pins Lead-free |
| 描述与应用 |
特性 迷你逻辑系列2输入或门 宽电源电压范围：1 V到3.6 V 低消耗电流：1.0μA最大值（在3.6 V，25°C） 典型传播延迟：TPD =7纳秒（3 V） 高抗干扰性：VNIH= VNIL=28％VCC最小 掉电保护：所有引脚 无铅 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
