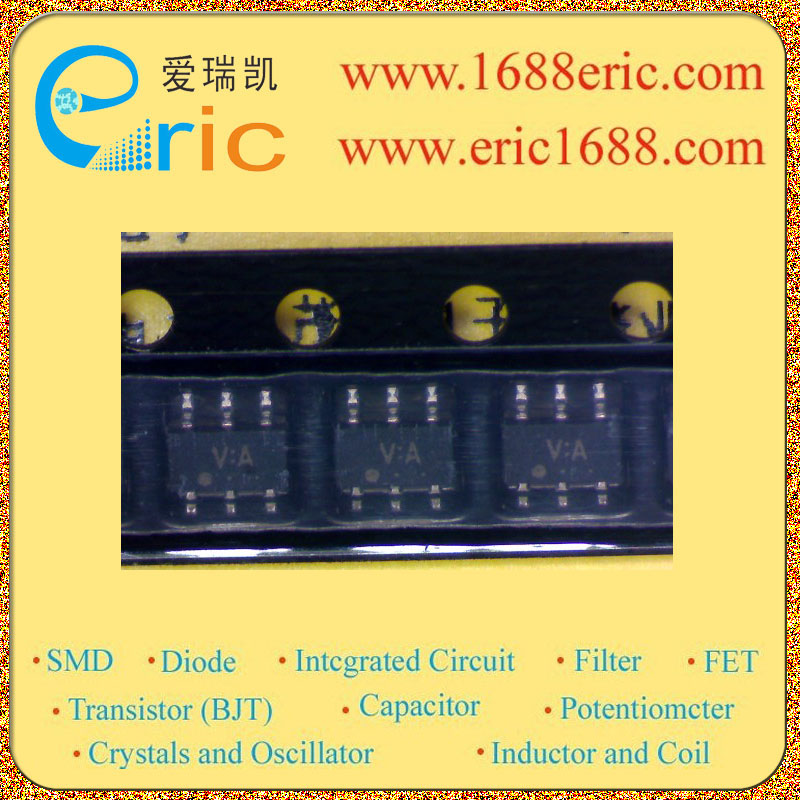

RN4601 VA 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-50V/50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
-50V/50V |
| 集电极连续输出电流IC
Collector Current(IC) |
-100mA/100mA |
| Q1基极输入电阻R1
Input Resistance(R1) |
4.7KΩ/Ohm |
| Q1基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
4.7KΩ/Ohm |
| Q1电阻比(R1/R2)
Q1 Resistance Ratio |
1 |
| Q2基极输入电阻R1
Input Resistance(R1) |
4.7KΩ/Ohm |
| Q2基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
4.7KΩ/Ohm |
| Q2电阻比(R1/R2)
Q2 Resistance Ratio |
1 |
| 直流电流增益hFE
DC Current Gain(hFE) |
30 |
| 截止频率fT
Transtion Frequency(fT) |
200MHz/250MHz |
| 耗散功率Pc
Power Dissipation |
300mW/0.3W |
| Description & Applications |
Features ? TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) Silicon NPN Epitaxial Type (PCT Process) ? Includeing two devices in SM6 (super mini type with 6 leads) ? With built-in bias resistors ? Simplify circuit design ? Reduce a quantity of parts and manufacturing process Applications ? Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications. |
| 描述与应用 |
特点 ?东芝晶体管的硅PNP外延型硅NPN外延型（PCT工艺）（PCT工艺） ?包括，两台设备SM6（超迷你型6引线） ?内置偏置电阻 ?简化电路设计 ?减少了部件数量和制造工艺 应用 ?开关，逆变电路，接口电路和驱动器电路应用 |
