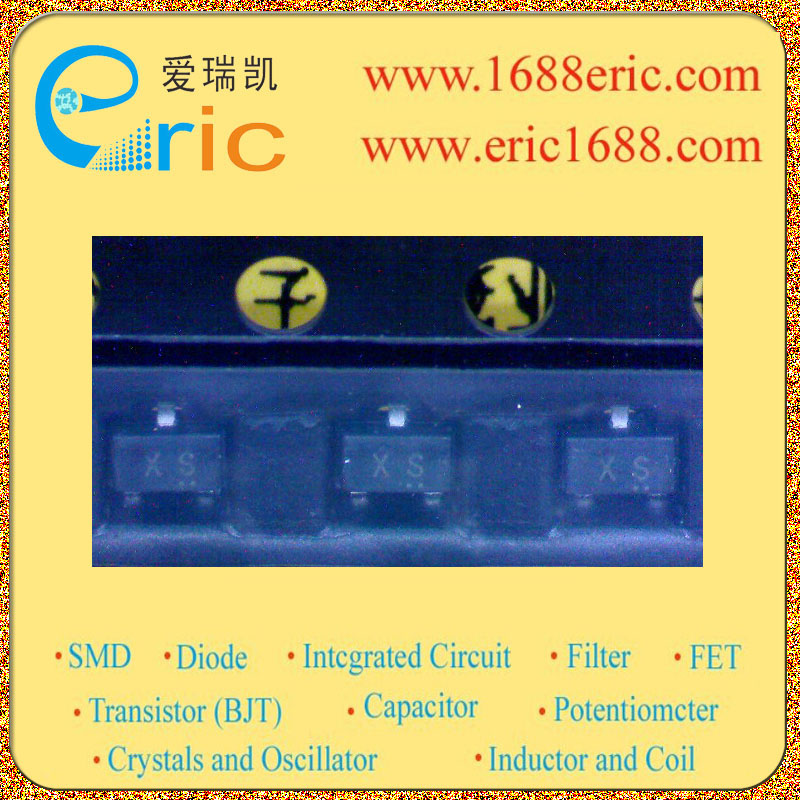

RN1315 XS 的参数 |
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V |
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V |
集电极连续输出电流IC
Collector Current(IC) |
100mA/0.1A |
基极输入电阻R1
Input Resistance(R1) |
1KΩ/Ohm |
基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
10KΩ/Ohm |
电阻比(R1/R2)
Resistance Ratio |
0.1 |
直流电流增益hFE
DC Current Gain(hFE) |
50 |
截止频率fT
Transtion Frequency(fT) |
250MHz |
耗散功率Pc
Power Dissipation |
0.1W/100mW |
Description & Applications |
Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN2314~RN2318 |
描述与应用 |
开关,逆变电路,接口电路 和驱动器电路应用 借助内置的偏置电阻简化电路设计 数量减少了零件和制造工艺 补充到RN2314~~ RN2318 |
