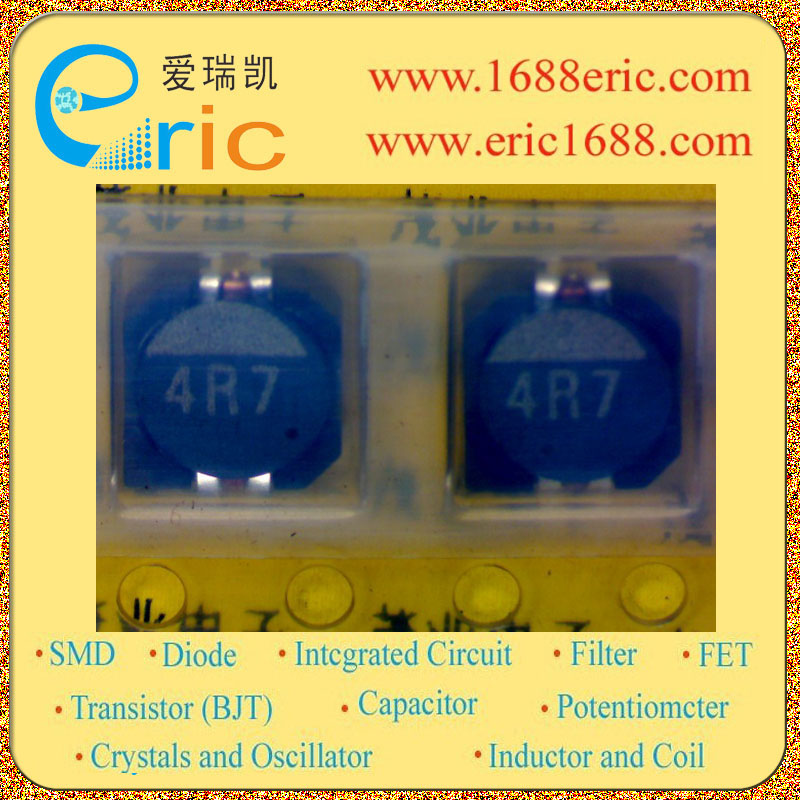

RLF5018T-4R7M1R4 的参数 |
| Q值
Q Value |
|
| 电感值
Inductance |
4.7uH |
| 误差
Tolerance |
±20 |
| 额定电流
Current Rating |
1400mA |
| 饱和电流
Current - Saturation |
|
| DC电阻DCR
DC Resistance (DCR) |
0.045Ω/Ohm |
| Description & Applications |
FEATURES ? RLF5018 type has been developed to expand the RLF series by acquiring a more compact and low-profile type. Its low resistance feature contributes to power saving of portable devices (long-time driving of batteries). ? This inductor has a structural design for an automated production line, capable of responding to the requirements in delivery dates and prices. ? This product is a compact and low-profile type by adopting an optimum structural design of a core shape on a magnetic circuit. A rectangular wire is applied to increase a rate of wiring area for a low resistance and a large current. ? This product can be delivered with embossed carrier taping so as to be available for the reflow soldering. ? Completely lead-free product. |
| 描述与应用 |
特点 已经发展到?RLF5018型扩大RLF系列由 获得一个更加紧凑和低调型。它的低阻力 便携式设备的节电功能有助于 （长时间电池驱动）。 ?该电感具有结构设计的自动化生产 线，能应对的要求交付 日期和价格。 ?本产品是通过采用一个紧凑和低调型 最佳的结构设计上的磁路的铁心形状。 的矩形导线施加增加的速率的布线区域 低电阻和大电流。 ?本产品可以交付浮雕载波录音 以使用回流焊。 ?完全无铅产品 |
