| Description & Applications |

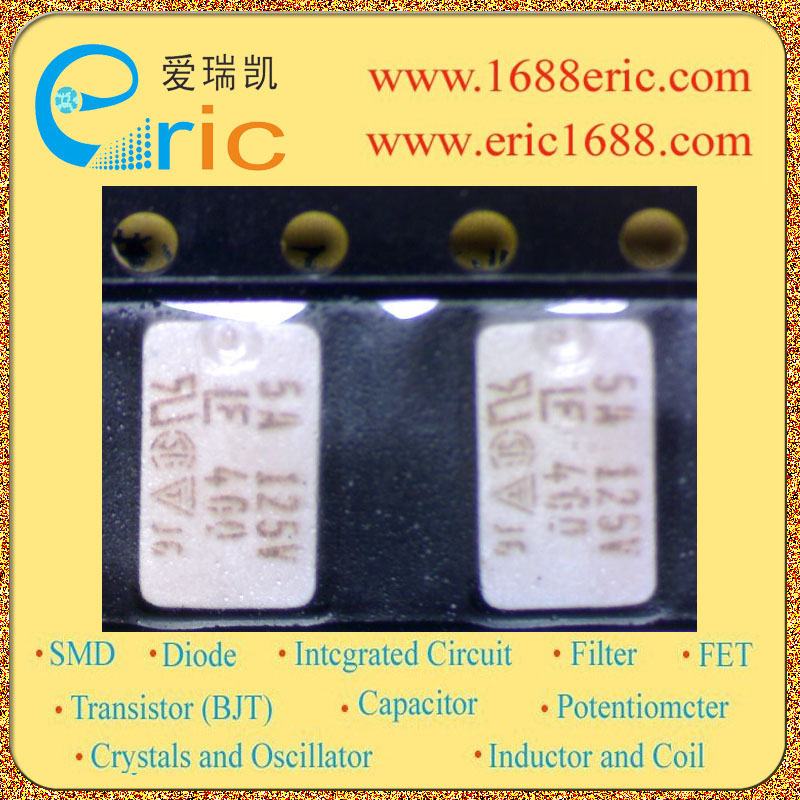

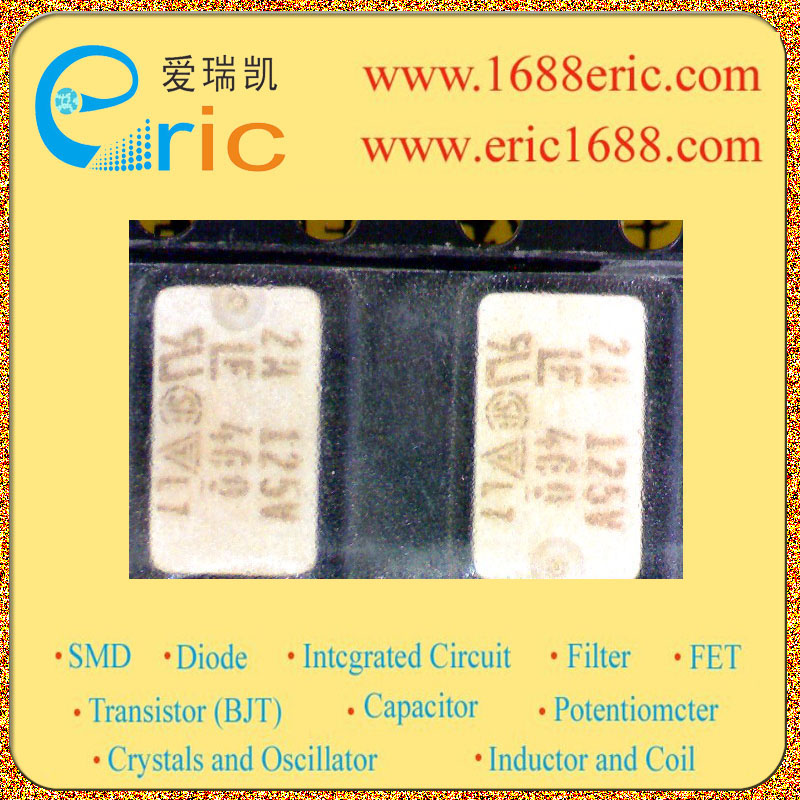

SUBMINIATURE SURFACE MOUNT PICO?SMF Slo-Blo?Type Fuse 460 Series The PICO?SMF Slo-Blo? Fuse product provides Pico?fuse reliability and performance in a standard rectangular surface mount package. Vibration: MIL-STD-202, Method 201 (10–55 Hz, .06 in. total excursion). Salt Spray: MIL-STD-202, Method 101, Test Condition B (48 hrs.). Insulation Resistance (After Opening): MIL-STD-202, Method 302, Test Condition A, (10,000 ohms minimum). Resistance to Soldering Heat: MIL-STD-202, Method 210, (3 sec. at 260°C). Thermal Shock: MIL-STD-202, Method 107, Test Condition B (–65 to 125°C). Moisture Resistance: MIL-STD-202, Method 106, High Humidity (90-98 RH), Heat (65°C). PHYSICAL SPECIFICATIONS: Materials: Body: Ceramic Terminations: Tin-Lead Alloy or Silver Plated Brass Caps. Soldering Parameters: Wave Solder — 260°C, 3 seconds maximum Reflow Solder — 230°C, 30 seconds maximum Solderability: MIL-STD-202, Method 208. |
