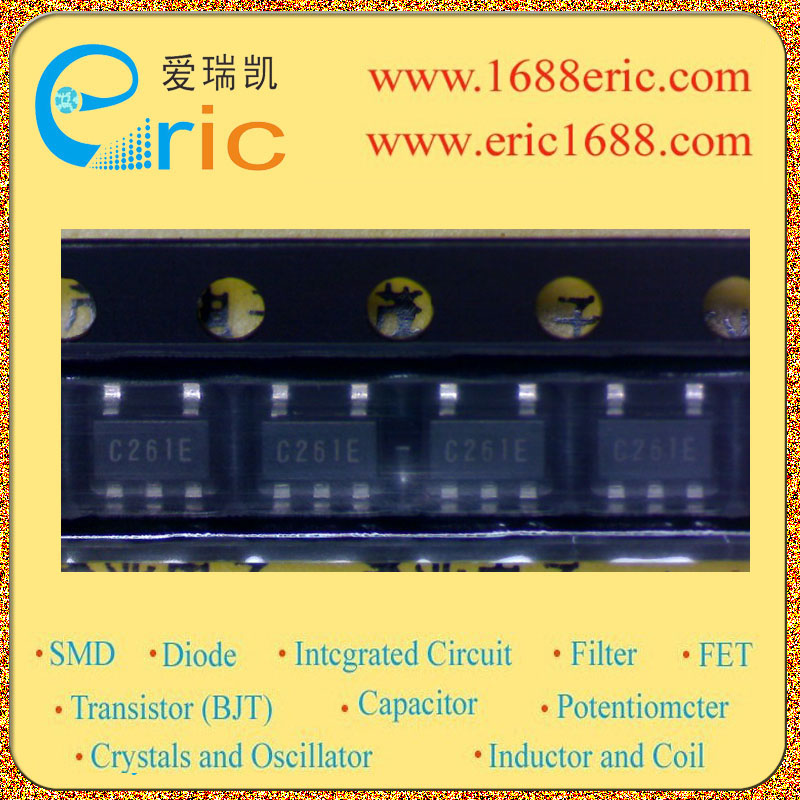

R1180N261B C26 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
6.5V |
| 输出电压VOUT
Voltage - Output |
2.6V |
| 输出电流Io
Current - Output |
150mA/0.15A |
| 最大压降VDO
Voltage - Dropout |
350mV/0.35V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
有 Yes |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
150mA LDO REGULATOR ;?Low Supply Current Typ. 1μA(Except the current through CE pull-down circuit) ? Standby Mode .Typ. 0.1μA ? Low Dropout VoltageTyp. 0.25V (IOUT=150mA 3.0V Output type) ? Low Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C ? Good Line Regulation Typ. 0.05%/V ? High Output Voltage Accuracy ±2.0% ? Output Voltage 1.2V to 3.6V ? Built-in Fold Back Protection Circuit Typ. 40mA (Current at short mode) ? Ceramic capacitors are recommended to be used with this IC 0.1μF ? Stable voltage reference. ? Power source for electrical appliances such as cameras, VCRs and camcorders. ? Power source for battery-powered equipment. |
| 描述与应用 |
150MA LDO稳压器;?低电源电流典型。 1μA（除电流通过CE下拉电路） ?待机模式典型。 0.1μA 低降VoltageTyp。 0.25V（IOUT=150MA3.0V输出类型） ?低温度漂移系数的输出电压典型值。温度系数±100ppm/°C 线路调整好典型。 0.05％/ V ?高输出电压精度±2.0％ ?输出电压1.2V至3.6V ?内置折返保护电路的典型。 40mA（附加电流在很短的模式） ?建议使用此IC0.1μF陶瓷电容器 ?稳定的参考电压。 ?电源的电器，如摄像机，录像机和摄像机。 ?电池供电设备的电源。 |
